China Custom Manifolds Factory
As a leading custom manifolds manufacturer in China, we specialize in high-performance, bespoke hydraulic and pneumatic manifold solutions. We deliver precision-crafted manifolds tailored to OEM/industrial needs.
±0.001mm Tolerance Guarantee
Precision Custom Designs
72-Hour Sample Delivery
Global Logistics Network
Table Of Contents
Hide
What Our Clients Say
Our clients are located worldwide, and their feedback speaks for itself. If you’d like to verify our reputation with customers in your area, don’t hesitate to contact us—we’d be happy to connect you with them and share relevant case studies.
Most Common Custom Manifolds by Industry
Hydraulic Systems
Utilizing advanced CNC machining for precise surface finishes and dimensional accuracy, ensuring perfect fit and function.
Precision machining delivers tight tolerances, reducing friction and enhancing reliability under extreme conditions.

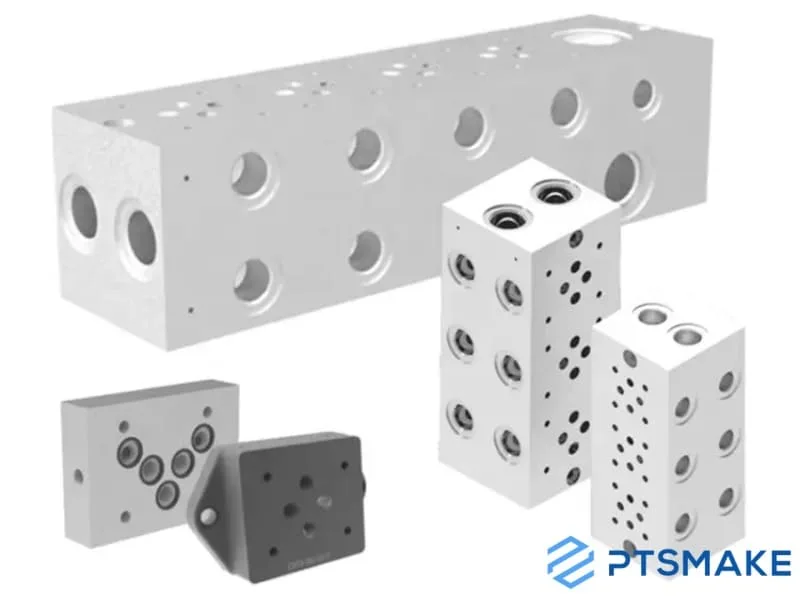

Semiconductor
State-of-the-art machining processes provide excellent sealing surfaces, ensuring performance in high-stress environments.

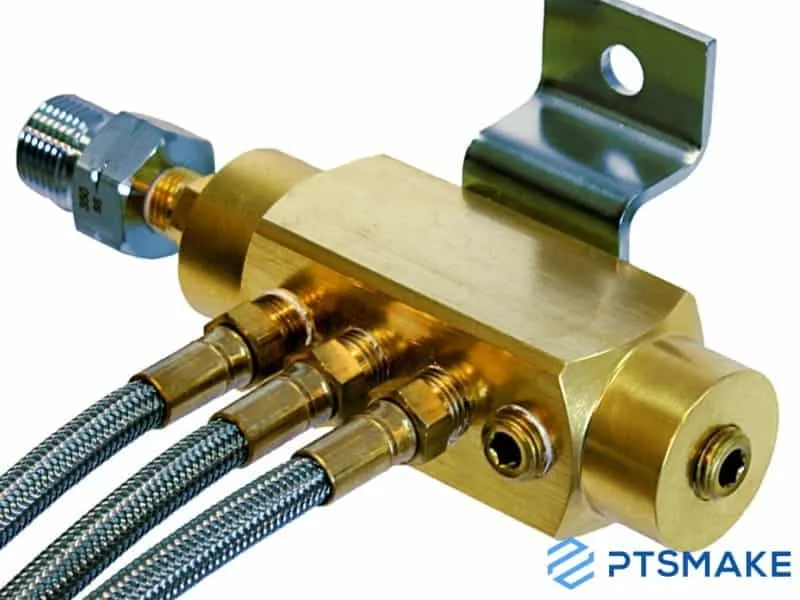

Refrigeration
High-precision CNC machining ensures intricate pathways are accurately crafted for superior fluid control.

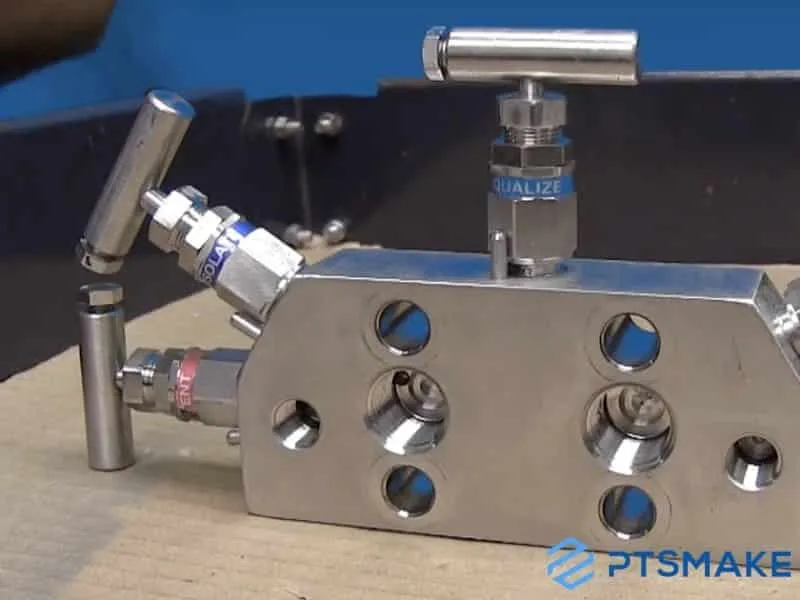

Energy Sector
Precision machining techniques yield perfectly threaded ports, ensuring leak-free and dependable connections.

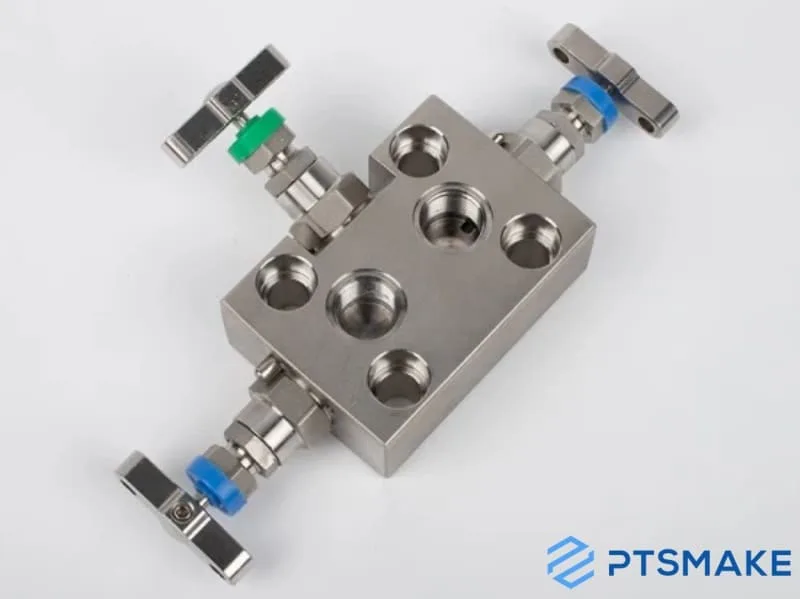

Medical Devices
Machined with precision for durability and exacting fit, enhancing mounting stability and ease of installation.

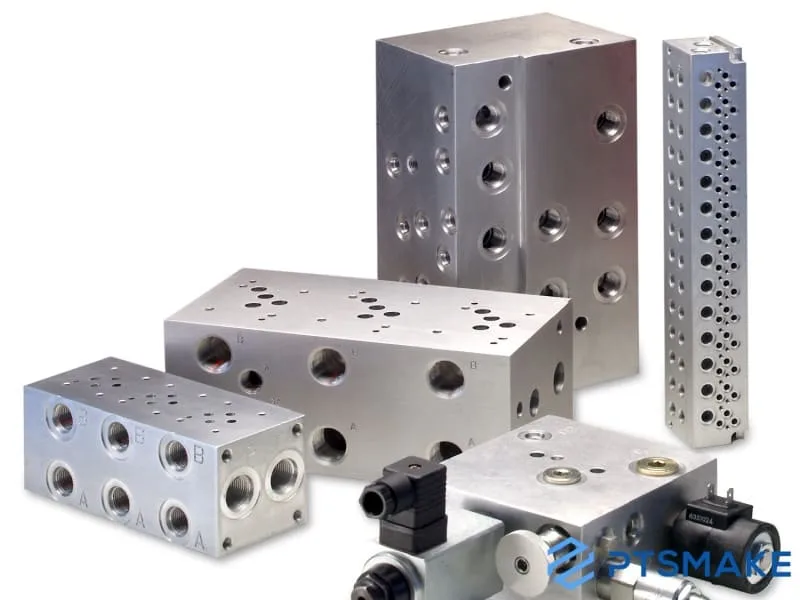

Automation
Advanced manufacturing processes ensure precise seal channels for optimal leakage prevention and component life.

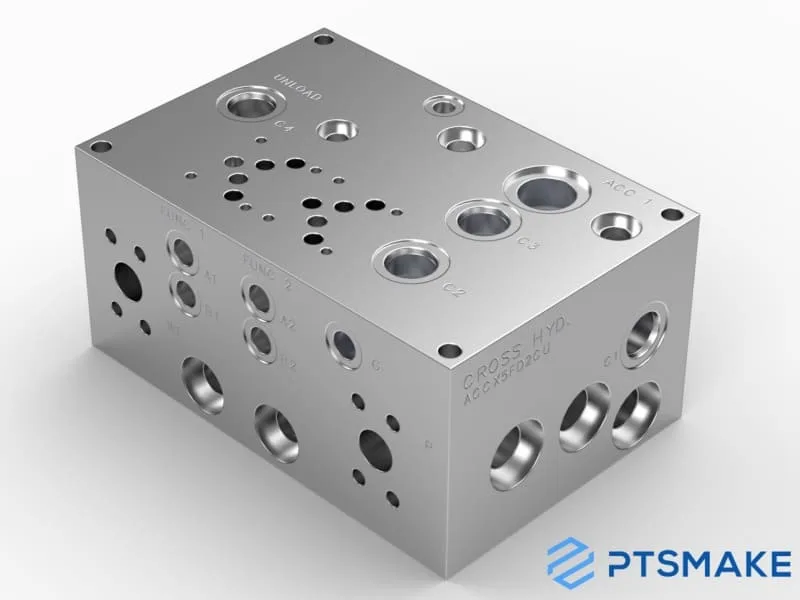

Aerospace
High-performance machining capabilities deliver custom solutions with exceptional precision and surface quality.
Why Choose PTSMAKE for Custom Manifolds
Precision Manufacturing
We deliver ±0.001mm tolerances using 20+ years of CNC expertise.
Quality Guarantee
20+ years of ISO-certified production. Every hydraulic component undergoes 3-stage precision inspection.
Rapid Delivery
35% shorter lead times through optimized production workflows.
Cost Control
Optimized material usage reduces expenses. Free DFM analysis prevents redesign costs upfront.
How PTSMAKE Ensures Flawless Quality Control in Custom Manifolds Manufacturing
- At PTSMAKE, quality control starts before production begins. Our 22 years of experience in precision manufacturing for clients like BMW and HUAWEI taught us one truth: consistent quality requires systematic planning. For custom manifolds, we begin with material certification checks. Every metal or polymer raw material gets tested for hardness, tensile strength, and chemical composition using XRF analyzers.
- Our CNC machining process uses real-time monitoring. Advanced sensors track tool wear rates and machining accuracy during every custom manifold production run. If deviations exceed 5μm – far below industry tolerance standards – the system automatically pauses operations. This prevents costly reworks and ensures your manifolds meet exact specifications.
- Three-stage inspection protocols eliminate defects. First-article inspections verify dimensional accuracy using CMM machines. In-process checks occur every 2 hours during production. Final inspections include pressure testing and surface finish analysis. We document every step with photos and videos for full traceability.
- Custom manifolds require specialized expertise. Our engineering team completes quarterly GD&T training to maintain ISO 9001:2015 standards. For complex manifold projects, we create dedicated quality control matrices mapping all critical parameters to inspection methods. This approach helped reduce client-reported defects by 83% since 2020.
- Fast response teams solve quality issues proactively. When a medical device client needed emergency manifold modifications last year, our engineers implemented design changes within 48 hours without stopping production. This responsiveness comes from maintaining dedicated quality control staff across all shifts.
"We needed medical manifolds with 0.005mm tolerance. PTSMAKE's team suggested material alternatives that cut costs by 18% without compromising FDA compliance. Their DFM report was incredibly detailed.
- Dr. Emily Koh, Medical Device Engineer, Germany"
Top Materials Used in Custom Manifolds Manufacturing
Custom manifolds require materials that balance durability, corrosion resistance, and machinability. Here are the most common options ranked by usage frequency.
Aluminum
Aluminum alloys like 6061 and 7075 dominate due to their lightweight nature, corrosion resistance, and CNC machining efficiency.
Stainless Steel
Stainless steel (304/316) is preferred for high-pressure applications requiring extreme corrosion resistance and structural integrity.
Titanium Alloys
Titanium alloys suit aerospace and medical custom manifolds requiring high strength-to-weight ratios and biocompatibility.
POM (Acetal)
POM plastic provides high stiffness, low moisture absorption, and tight tolerances for precision fluid-handling systems.
Nylon
Nylon is cost-effective for low-pressure custom manifolds needing chemical resistance and electrical insulation.
Brass
Brass offers excellent thermal conductivity and low friction, making it ideal for hydraulic and pneumatic custom manifolds.
Copper Alloys
Copper-based materials excel in heat exchanger manifolds due to superior thermal and electrical conductivity.
Carbon Steel
Carbon steel handles heavy-duty industrial applications where extreme mechanical stress is common.
Typical Lead Times for Custom Manifolds:
What B2B Buyers Need to Know
Understanding timelines for custom manifolds manufacturing
- When ordering custom manifolds, lead times directly impact your project schedules. Most suppliers require 4-6 weeks for complex designs, but PTSMAKE delivers faster 1-2 Weeks without compromising precision. Our 20+ years in precision manufacturing help us optimize every production phase.
- Three factors determine lead times: design complexity, material availability, and order volume. We use advanced CNC machining technologies to handle tight tolerances efficiently. For urgent needs, ask about our expedited prototyping service – some projects ship in 7-15 days.
- Unlike suppliers who overpromise, we provide realistic timelines upfront. Our team updates you weekly through our client portal, preventing last-minute surprises. This transparency helps clients like HUA WEI and BMW maintain smooth production flows.
- Lead times shrink through our integrated manufacturing approach. Unlike suppliers who outsource machining or molding, PTSMAKE handles all processes in-house. This eliminates coordination delays between multiple vendors, ensuring faster delivery of your custom manifolds.
How to Manufacture Custom Manifolds: 8 Key Steps
Follow this proven process for high-quality custom manifolds optimized for your application.
1. Design Review
Verify design specs match fluid dynamics, pressure, and environmental needs. PTSMAKE uses 3D simulations to refine custom manifolds.
2. Material Selection
Choose metals (stainless steel, aluminum) or engineering plastics. We recommend cost-effective options that meet durability requirements.
3. CNC Programming
Generate precision toolpaths for milling/turning. Our 20+ years of CNC expertise ensures error-free machining.
4. Precision Machining
Cut raw materials using advanced CNC machines. PTSMAKE achieves ±0.005mm tolerances for leak-proof manifolds.
5. Surface Treatment
Apply coatings or polishing. We prevent corrosion and improve surface finish for long-term reliability.
6. Quality Inspection
Check dimensions with CMMs and pressure-test functionality. Our ISO-certified process catches defects early.
7. Assembly & Testing
Install valves/fittings and simulate real-world conditions. We test 100% of custom manifolds before shipping.
8. Packaging & Delivery
Secure parts for global shipping. PTSMAKE guarantees on-time delivery to US/EU clients in 7-15 days
Request a Custom Quote Today
Get an accurate estimate for your project today. Let us help you meet your exact specifications.
Cost-Effective Solutions for Custom Manifolds
Discover practical strategies to reduce expenses without compromising quality in custom manifold production
1. Optimize Design Early
PTSMAKE engineers help clients simplify complex designs while maintaining functionality. We use CAD analysis to eliminate unnecessary features, reducing material waste and machining time.
2. Standardize Components
We identify reusable elements across projects. Our team creates modular templates for ports and channels, cutting design costs by 15-20% for repeat orders.
3. Choose Smart Materials
We recommend cost-efficient alloys and polymers that meet technical requirements. PTSMAKE maintains partnerships with material suppliers to secure bulk pricing advantages.
4. Leverage Volume Discounts
Combining multiple orders lowers per-unit costs. Our CNC machining centers handle batch production efficiently, offering 8-12% savings on orders over 500 units.
5. Minimize Secondary Operations
Precision machining reduces post-processing needs. We achieve surface finishes up to Ra 0.2μm directly from machines, saving polishing/anodizing costs.
6. Consolidate Suppliers
PTSMAKE handles both CNC machining and injection molding. Single-source production eliminates coordination between multiple vendors, speeding delivery by 30%.
7. Prototype Strategically
Our rapid prototyping service uses 3D printing for functional testing. Clients verify designs before mass production, avoiding costly mold modifications later.
Customization Options for High-Performance Custom Manifolds
Tailor every detail to meet your industrial requirements with precision-engineered solutions.
Material Selection: PTSMAKE offers full customization for **custom manifolds** to match exact design specifications. Choose from materials like stainless steel, aluminum, or engineering plastics. We optimize durability and performance based on your application needs, whether for aerospace, automotive, or robotics industries.
Precision and Complex Geometries: Control manifold dimensions, port configurations, and flow paths with our CNC machining and injection molding expertise. Our team handles complex geometries and tight tolerances (as low as ±0.005mm). This ensures seamless integration into your existing systems without compatibility issues
Surface Treatments: Custom surface treatments include anodizing, plating, or powder coating. These options improve corrosion resistance and extend product lifespan. Add branding marks, threaded fittings, or sensor mounts directly during manufacturing to reduce assembly steps.
Custom Order QTY: Scale production flexibly from prototypes to high-volume orders. PTSMAKE’s **precision manufacturing** services maintain consistency across batches. Our ISO-certified facilities and strict quality checks guarantee parts meet international standards like AS9100 or ISO 13485
Custom Manifolds Success Stories
Client: Medical Device Manufacturer
Challenge: A major medical device manufacturer needed stainless steel custom manifolds for a portable oxygen delivery system. Their previous supplier caused a 6-week delay due to poor surface finish and dimensional inaccuracies. PTSMAKE analyzed their design and proposed CNC machining with post-process electrochemical polishing. We delivered 200 units within 18 days, achieving Ra 0.2μm surface roughness and ±0.01mm tolerances. The client reported zero leakage during pressure testing and completed their FDA-approved product launch on schedule.
Client: Automotive Industry
Challenge: An automotive R&D team required aluminum custom manifolds for hydrogen fuel cell prototypes. Their existing vendor couldn’t machine complex internal channels while maintaining 0.05mm wall thickness consistency. Our engineers redesigned the manifold using 5-axis CNC machining with specialized tool paths. We produced 15 validation units in 10 days, enabling the client to test 3 design iterations simultaneously. The final version achieved 98% flow efficiency, accelerating their product development cycle by 8 weeks.
Client: A Robotics Company
Challenge: A robotics company needed custom manifolds for hydraulic systems in agricultural machinery. Their overseas supplier used outdated welding methods, causing joint failures in field tests. PTSMAKE suggested a single-piece CNC-machined manifold from 17-4PH stainless steel. We implemented vacuum heat treatment to achieve 45 HRC hardness and integrated all fluid ports through precision drilling. The solution reduced part weight by 22% while withstanding 5000+ PSI operating pressure, eliminating maintenance costs during harvest seasons.
Contact Custom Hydraulic Cylinder Parts Expert Today!
We look forward to the opportunity to work with you and contribute to your project’s success.
Overcoming Common Challenges for Custom Manifolds
Precision manufacturing of custom manifolds requires expertise in balancing design complexity with production efficiency. PTSMAKE specializes in solving these challenges through advanced CNC machining and injection molding technologies.
Challenge 1: Material Selection Errors
Poor material choices cause premature wear or leaks. Our engineers analyze operating conditions (temperature/pressure) to recommend chemically resistant polymers or durable metals.
Challenge 2: Tolerance Mismatches
Even 0.1mm deviations disrupt manifold functionality. We use ISO 2768-mK standard CNC machines achieving ±0.01mm precision for perfect seal surfaces.
Challenge 3: Insufficient Surface Finish
Lack of proper surface treatment can lead to corrosion, buildup of foreign substances, or increased friction.
Apply appropriate surface treatments based on material and application requirements, such as nickel plating, anodizing, or coating.
Challenge 4: Assembly Compatibility Issues
Mismatched ports delay installations. We prototype all connection points using 3D-scanned client components for guaranteed fit.
Challenge 5: High-Performance Demands
erospace/medical manifolds require extreme reliability. Our dual QC checks (automated CMM + manual inspection) ensure 100% compliance with specs.
Challenge 6: Sealing Issues
Poor sealing can lead to fluid leaks or contamination, especially in high-pressure systems. Choose sealing materials and designs suitable for the operating conditions, and routinely inspect and replace seals. Ensure cleanliness and correct procedures during installation.
Challenge 7: Insufficient Cleaning and Maintenance
Lack of proper cleaning and maintenance can cause system blockages or performance degradation. Design systems that are easy to maintain and clean, and develop detailed maintenance schedules, including regular inspections and cleaning procedures.
Custom Manifolds: Frequently Asked Questions (FAQs)
Q1: What materials are best for high-pressure custom manifolds?
A: Stainless steel, aluminum, and PEEK are common for durability. PTSMAKE recommends material selection based on pressure, temperature, and chemical exposure. We test materials to ensure they meet your application’s demands.
Q2: How do you ensure leak-proof performance in custom manifolds?
A: Our CNC machining achieves tolerances as tight as ±0.005mm. We use advanced sealing techniques and pressure-test every manifold to ISO 9001 standards.
Q3: Can you handle complex multi-port manifold designs?
A: Yes. We specialize in complex geometries with 3D milling and 5-axis CNC machines. Send your CAD file, and we’ll optimize the design for manufacturability.
Q4: What’s the lead time for low-volume custom manifold orders?
A: Prototypes take 7-10 days; production batches ship in 2-3 weeks. We keep common materials in stock to avoid delays.
Q5: How do you reduce costs for large-volume custom manifold orders?
A: We automate machining processes and offer bulk material discounts. Our DFM analysis identifies cost-saving design adjustments without sacrificing quality.
Q6: Do your manifolds meet aerospace or medical certifications?
A: We’re ISO 9001-certified and comply with AS9100 (aerospace) and ISO 13485 (medical). Full documentation is provided for audits.
Q7: What file formats do you accept for custom manifold designs?
A: STEP, IGES, and SolidWorks files are preferred. Our engineers review all files to confirm compatibility with your system.
Q8: How do you handle design changes mid-production?
A: Notify us within 24 hours of order confirmation, and we’ll adjust at no extra cost. Changes after machining starts may incur a fee.
Q9: Can you provide post-machining services like plating or anodizing?
A: Yes. We offer surface treatments, including nickel plating, hard-coat anodizing, and passivation, to improve corrosion resistance.
