What is 15-5 PH Stainless Steel?

As a manufacturing expert with over 15 years in the precision machining industry, I often hear customers asking about material choices. Many are overwhelmed by the variety of stainless steel grades available. When they need to balance strength and corrosion resistance, the decision becomes even more challenging.

15-5 PH stainless steel is a precipitation-hardening martensitic stainless steel that combines excellent corrosion resistance with high strength. It contains approximately 15% chromium and 5% nickel, making it ideal for aerospace, medical, and industrial applications where durability is crucial.

I’ve worked with 15-5 PH stainless steel on countless projects at PTSMAKE, and its versatility never fails to impress me. The unique properties of this material make it perfect for critical components that need both strength and corrosion resistance. Let me share more about this remarkable material and how it can benefit your next project.

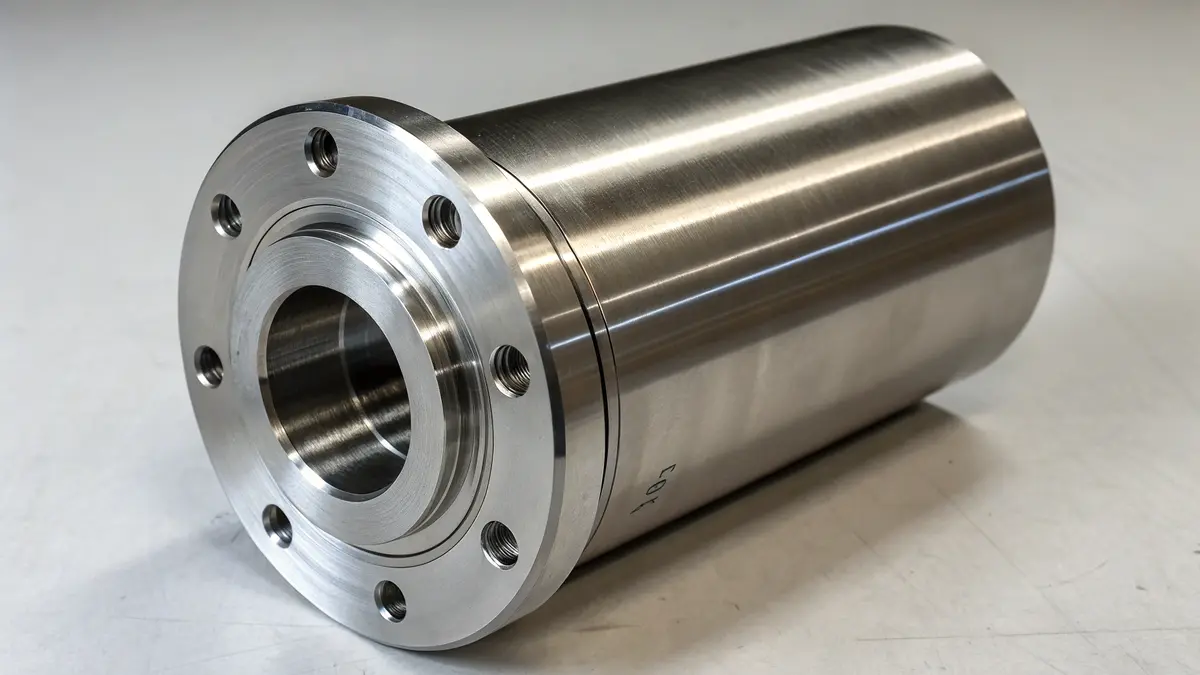

What are the properties of 15-5 PH stainless steel?

Have you ever struggled with selecting the right material for critical components that demand both high strength and excellent corrosion resistance? Many engineers face this challenge when traditional stainless steels fall short, leading to premature failures and costly replacements. The consequences of choosing the wrong material can be severe, affecting not just performance but also safety and reliability.

15-5 PH stainless steel is a precipitation-hardening martensitic alloy that combines exceptional strength (up to 170 ksi yield strength) with superior corrosion resistance. It contains 15% chromium, 5% nickel, and copper, offering improved toughness and ductility compared to 17-4 PH steel.

Chemical Composition and Structure

The unique properties of 15-5 PH stainless steel stem from its carefully balanced chemical composition. At PTSMAKE, we work extensively with this material, and I’ve observed its remarkable characteristics firsthand. Here’s a detailed breakdown of its composition:

Mechanical Properties

The mechanical properties of 15-5 PH stainless steel are truly impressive. Through precision manufacturing processes, we can achieve various strength levels:

• Ultimate Tensile Strength: 155-170 ksi
• Yield Strength: 145-160 ksi
• Elongation: 10-15%
• Hardness: 35-42 HRC

Corrosion Resistance

One of the standout features of 15-5 PH stainless steel is its exceptional corrosion resistance. The high chromium content forms a passive oxide layer that provides:

• Superior resistance to atmospheric corrosion
• Good resistance to many chemical environments
• Enhanced protection against stress corrosion cracking
• Excellent performance in marine environments

Heat Treatment Capabilities

The material’s response to heat treatment is remarkable. We can achieve different property combinations through various heat treatment conditions:

• Condition H900: Maximum strength
• Condition H1025: Balanced strength and toughness
• Condition H1150: Maximum ductility and toughness

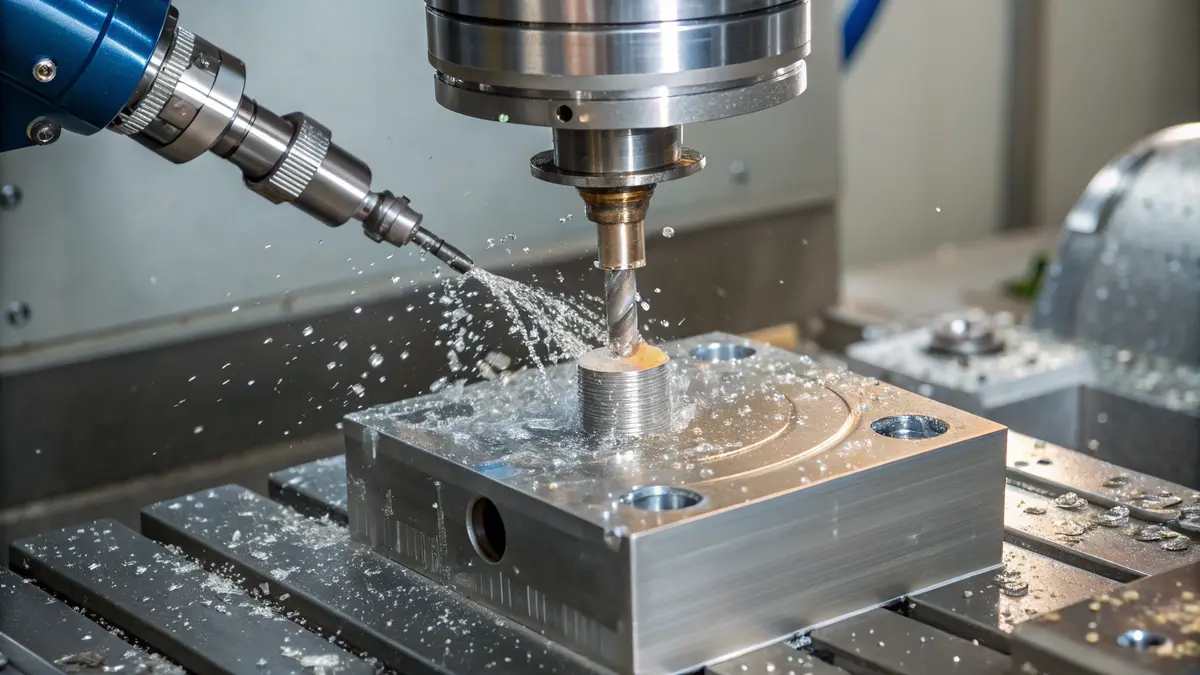

Machinability and Fabrication

In our manufacturing operations, 15-5 PH stainless steel demonstrates excellent machinability:

• Suitable for both conventional and CNC machining
• Good weldability with proper procedures
• Excellent surface finish capabilities
• Consistent material properties throughout

Temperature Performance

The material maintains its properties across a wide temperature range:

• Operating temperature range: -100°F to 600°F
• Excellent dimensional stability
• Good resistance to thermal cycling
• Minimal property changes at elevated temperatures

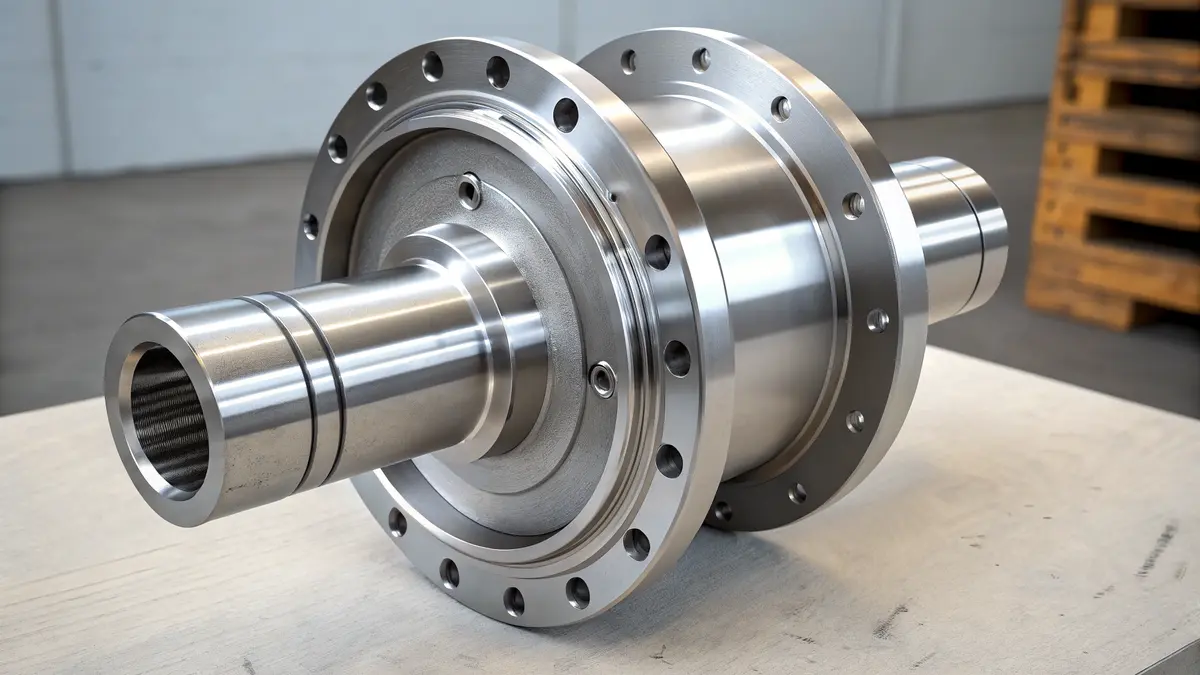

Applications and Industry Usage

Based on our experience serving various industries, 15-5 PH stainless steel excels in:

• Aerospace components
• Chemical processing equipment
• Nuclear power plant components
• Oil and gas industry equipment
• Medical and surgical instruments
• Marine hardware
• High-performance fasteners

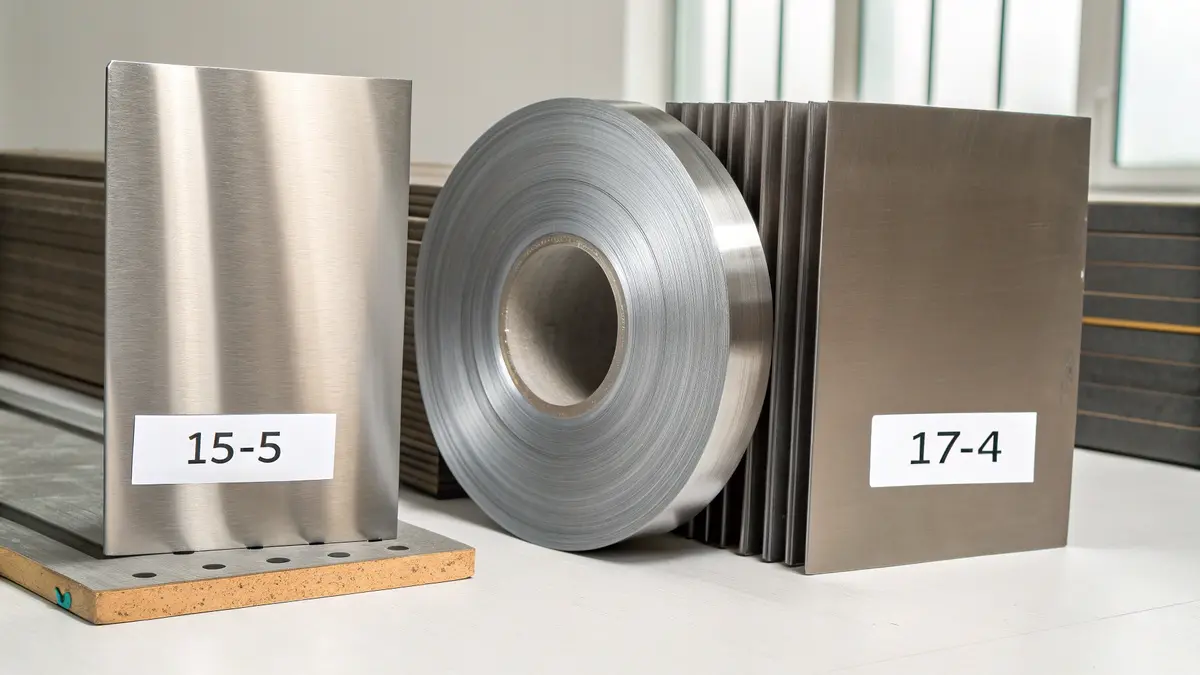

Comparison with Other Grades

When compared to similar grades, 15-5 PH stainless steel offers several advantages:

• Better transverse properties than 17-4 PH
• Higher strength than 304 and 316 grades
• Improved toughness over standard martensitic grades
• More consistent properties after heat treatment

Quality Control Considerations

To ensure optimal performance, specific quality control measures are essential:

• Precise heat treatment monitoring
• Regular composition verification
• Mechanical property testing
• Non-destructive testing for critical applications
• Surface finish inspection

This comprehensive understanding of 15-5 PH stainless steel properties helps in maximizing its potential in various applications. The material’s combination of strength, corrosion resistance, and versatility makes it an excellent choice for demanding engineering applications.

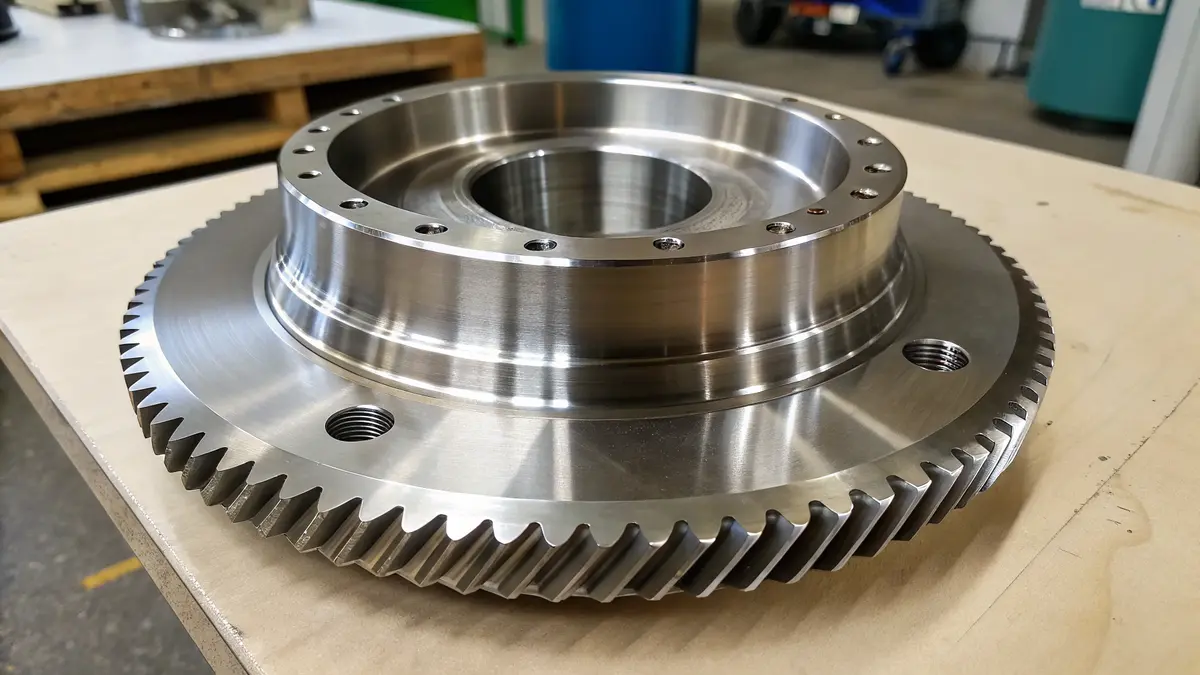

What are the chemical and mechanical properties of 15-5 PH stainless steel?

Selecting the right stainless steel grade for manufacturing can be overwhelming. Many engineers struggle with balancing material properties against cost and performance requirements. Making the wrong choice could lead to component failure or unnecessary expenses.

15-5 PH stainless steel is a precipitation-hardening martensitic stainless steel containing approximately 15% chromium and 5% nickel. It offers excellent corrosion resistance and high strength, with yield strength of 105 ksi and tensile strength over 138 ksi in the H1025 condition.

Chemical Composition Breakdown

The chemical composition of 15-5 PH stainless steel plays a crucial role in its performance. Here’s a detailed breakdown of its elements:

Role of Key Elements

Each element in 15-5 PH stainless steel serves a specific purpose:

• Chromium forms a passive oxide layer that provides corrosion resistance
• Nickel improves toughness and maintains the austenitic structure
• Copper enables precipitation hardening, enhancing strength
• Manganese and silicon act as deoxidizers during manufacturing
• Carbon contributes to strength but is kept low to maintain weldability

Mechanical Properties Analysis

The mechanical properties of 15-5 PH stainless steel vary depending on the heat treatment condition. In the commonly used H1025 condition:

• Yield Strength: 105 ksi (724 MPa)
• Ultimate Tensile Strength: 138 ksi (950 MPa)
• Elongation: 10-15%
• Hardness: 35-40 HRC
• Impact Strength: 20-30 ft-lbs (27-41 J)

Heat Treatment Effects

Heat treatment significantly influences the properties of 15-5 PH stainless steel:

• Solution Treatment: 1900°F (1038°C), followed by air cooling
• Age Hardening: Various temperatures produce different property combinations
• H1025 Condition: Aging at 1025°F (552°C) provides optimal strength-ductility balance
• H1150 Condition: Higher aging temperature improves toughness but reduces strength

Performance Characteristics

15-5 PH stainless steel exhibits several notable performance characteristics:

• Excellent corrosion resistance in atmospheric and mildly corrosive environments
• Good strength retention at elevated temperatures up to 600°F (316°C)
• Superior machinability compared to other high-strength stainless steels
• Good weldability when proper procedures are followed
• Dimensional stability during heat treatment

Industry Applications

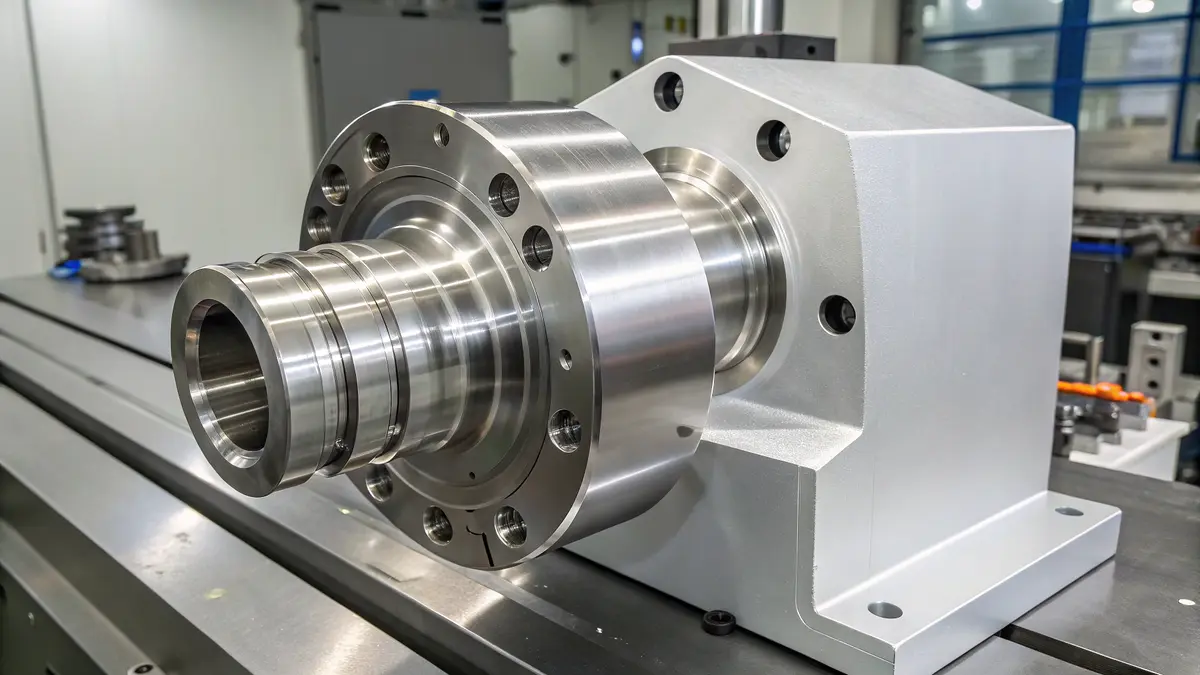

At PTSMAKE, I’ve seen 15-5 PH stainless steel excel in various applications:

• Aerospace: Landing gear components, structural parts
• Medical: Surgical instruments, implant devices
• Marine: Valve components, pump shafts
• Oil and Gas: Wellhead components, fasteners
• Chemical Processing: Pressure vessels, process equipment

Processing Considerations

Based on our manufacturing experience:

• Machining should be done with sharp tools and appropriate cooling
• Welding requires pre-heating and post-weld heat treatment
• Surface finishing can enhance corrosion resistance
• Age hardening must be carefully controlled for optimal properties
• Regular quality control testing ensures consistent properties

This comprehensive understanding of 15-5 PH stainless steel’s properties helps ensure successful manufacturing outcomes. When working with this material, proper processing parameters and quality control measures are essential for achieving the desired performance characteristics.

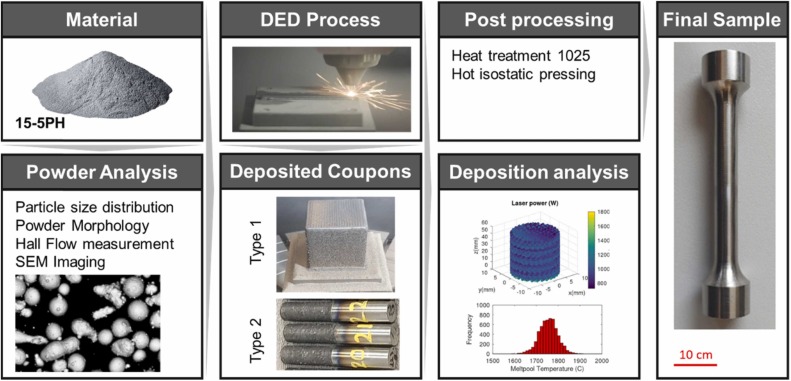

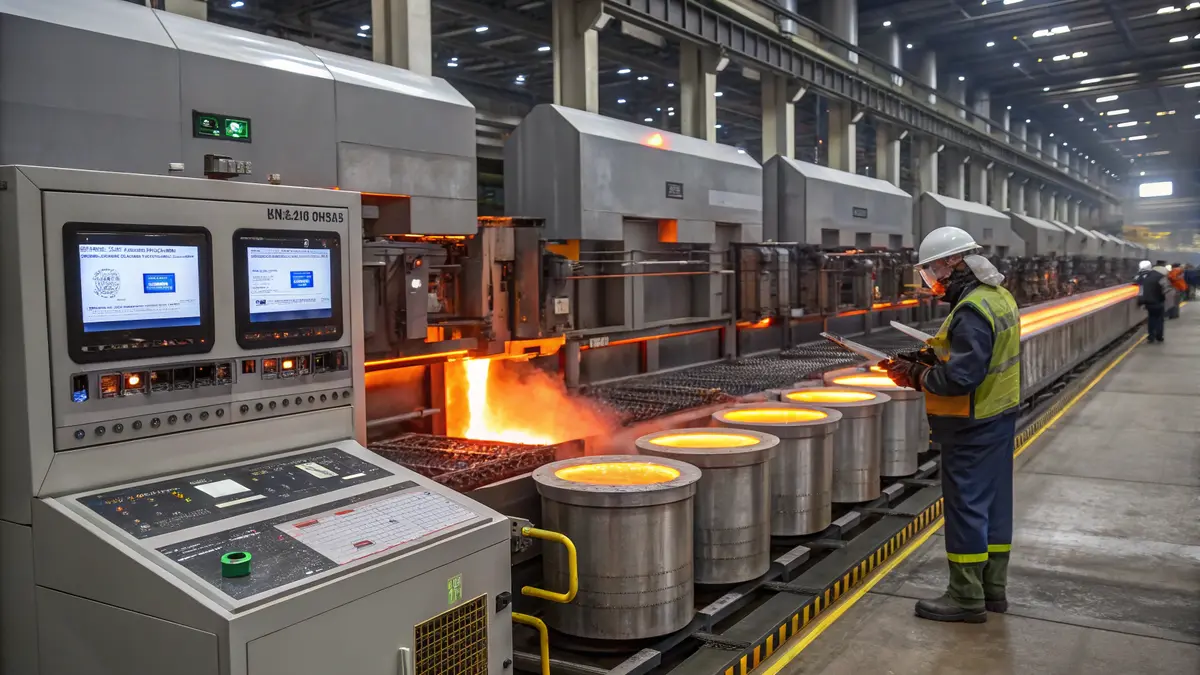

How is 15-5 PH stainless steel manufactured?

Manufacturing high-performance stainless steel can be challenging. Many manufacturers struggle with achieving consistent material properties and maintaining quality control throughout the production process. The complexity of the manufacturing process often leads to material defects and variations in mechanical properties.

15-5 PH stainless steel is manufactured through a sophisticated process that combines vacuum arc remelting (VAR) with precise heat treatment procedures. This process includes solution annealing, quenching, and aging at specific temperatures to achieve optimal mechanical properties and corrosion resistance.

The VAR Process Fundamentals

In my experience working with precision materials, the Vacuum Arc Remelting (VAR) process is crucial for producing high-quality 15-5 PH stainless steel. The process starts with an electrode of the alloy that’s gradually melted in a vacuum chamber. This method removes unwanted gases and impurities, resulting in a more uniform and cleaner material structure.

The VAR process includes several key steps:

1. Electrode preparation
2. Vacuum chamber setup
3. Controlled melting
4. Solidification under vacuum

Chemical Composition Control

The precise control of chemical composition is essential for achieving the desired properties of 15-5 PH stainless steel. Here’s a typical composition breakdown:

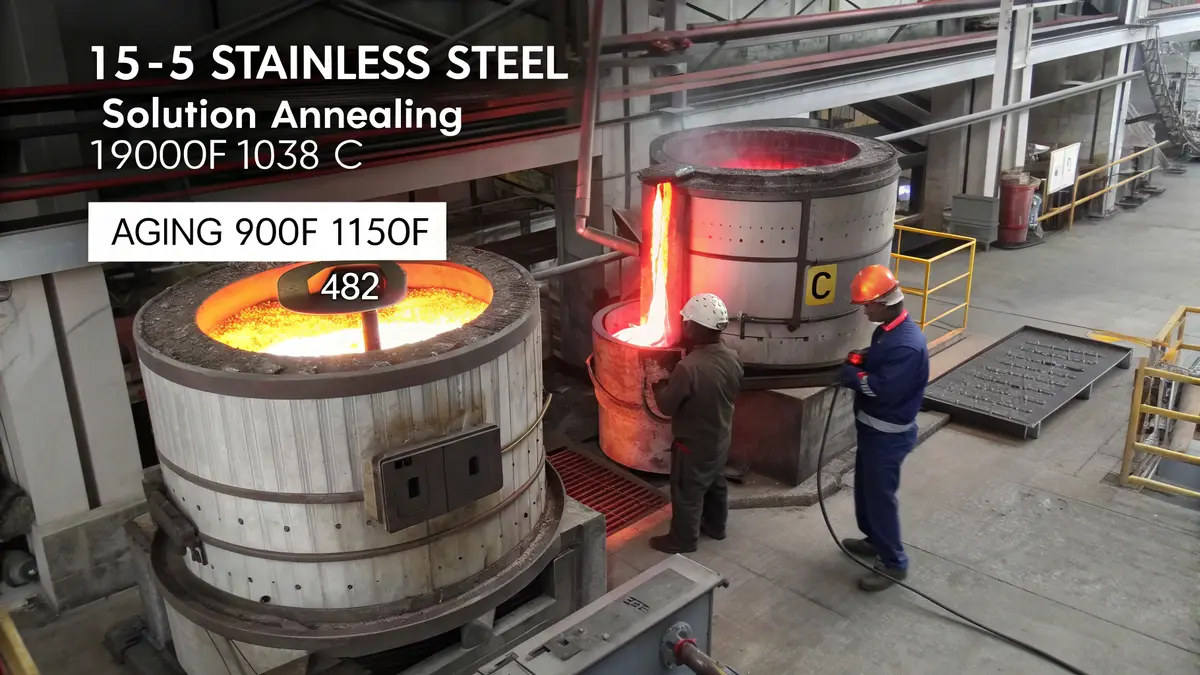

Heat Treatment Sequence

The heat treatment process consists of three main stages that I’ve found to be critical for achieving optimal properties:

Solution Annealing

• Temperature: 1900°F (1038°C)
• Duration: 30 minutes minimum
• Cooling: Rapid air cool or oil quench

Quenching

• Method: Air or oil quenching
• Temperature: Room temperature
• Speed: Rapid cooling to prevent unwanted precipitation

Aging Treatment

Different aging temperatures produce various property combinations:

Quality Control Measures

To ensure consistent quality, we implement several control measures:

1. Microstructure Analysis

   • Regular metallographic examination
   • Grain size measurement
   • Phase distribution assessment

2. Mechanical Testing

   • Tensile strength testing
   • Hardness testing
   • Impact testing
   • Fatigue testing

3. Non-Destructive Testing

   • Ultrasonic inspection
   • Magnetic particle testing
   • Dye penetrant inspection

Process Optimization

I’ve noticed that optimizing the manufacturing process requires careful attention to several key factors:

1. Temperature Control

   • Precise monitoring of heating and cooling rates
   • Uniform temperature distribution
   • Accurate temperature measurement systems

2. Time Management

   • Strict adherence to holding times
   • Minimized transfer times between processes
   • Documented process scheduling

3. Environmental Controls

   • Humidity monitoring
   • Contamination prevention
   • Clean room practices where necessary

Surface Finishing

The final surface finish is crucial for many applications. Common finishing methods include:

1. Mechanical Finishing

   • Grinding
   • Polishing
   • Shot peening

2. Chemical Finishing

   • Passivation
   • Pickling
   • Electropolishing

The quality of the surface finish directly impacts:

• Corrosion resistance
• Fatigue strength
• Aesthetic appearance
• Wear resistance

Through careful control of these manufacturing parameters, we can consistently produce 15-5 PH stainless steel that meets or exceeds industry standards. Each step in the process contributes to the final product’s performance characteristics, making it suitable for demanding applications in aerospace, medical devices, and other high-performance industries.

What are the advantages of using 15-5 PH stainless steel?

Choosing the wrong stainless steel grade can lead to premature component failure and increased maintenance costs. Many engineers struggle with balancing material properties, cost considerations, and performance requirements. This challenge becomes even more critical in demanding applications where failure isn’t an option.

15-5 PH stainless steel stands out as a premium choice due to its exceptional combination of high strength-to-weight ratio, superior corrosion resistance, and excellent mechanical stability. Its versatility and reliability make it ideal for critical applications in aerospace, medical, and industrial sectors.

Superior Strength-to-Weight Characteristics

In my experience working with various materials at PTSMAKE, 15-5 PH stainless steel’s strength-to-weight ratio is truly remarkable. This property makes it particularly valuable in applications where weight reduction is crucial without compromising structural integrity. The material achieves this through:

• Ultimate tensile strength ranging from 150-170 ksi
• Yield strength typically between 130-150 ksi
• Density comparable to conventional stainless steels (0.282 lbs/in³)

Enhanced Corrosion and Oxidation Protection

The corrosion resistance of 15-5 PH stainless steel sets it apart from many alternatives. This material provides:

Mechanical Stability Under Stress

One of the most impressive features I’ve observed in 15-5 PH stainless steel is its mechanical stability. Key benefits include:

• Minimal distortion under load
• Excellent fatigue resistance
• Consistent performance across temperature ranges
• Superior dimensional stability

Processing Advantages

The material offers several processing benefits:

Weldability

• Compatible with various welding methods
• Minimal pre-heating requirements
• Good post-weld properties
• Reduced risk of heat-affected zone cracking

Machinability

• Reasonable cutting speeds possible
• Good surface finish achievability
• Consistent tool life
• Predictable machining characteristics

Cost-Effectiveness in Long-Term Applications

While the initial cost might be higher than some alternatives, 15-5 PH stainless steel often proves more economical in the long run due to:

1. Extended service life
2. Reduced maintenance requirements
3. Lower replacement frequency
4. Minimal downtime for repairs

Applications and Industry Benefits

The versatility of 15-5 PH stainless steel makes it valuable across multiple sectors:

Aerospace Industry

• Landing gear components
• Structural fasteners
• Engine mounts
• Control systems

Medical Equipment

• Surgical instruments
• Sterilization equipment
• Medical device components
• Laboratory equipment

Industrial Applications

• Valve components
• High-pressure pumps
• Chemical processing equipment
• Power generation components

Material Property Optimization

To maximize the benefits of 15-5 PH stainless steel, consider these factors:

1. Heat Treatment Options

   • Condition A (Solution treated)
   • Condition H900 (Peak aged)
   • Condition H1150 (Over-aged)

2. Surface Finishing

   • Mechanical polishing
   • Electropolishing
   • Passivation
   • Chemical treatment

3. Design Considerations

   • Stress concentration minimization
   • Proper joint design
   • Adequate material thickness
   • Environmental exposure factors

Through proper material selection and processing, 15-5 PH stainless steel can provide exceptional performance in demanding applications. Its combination of strength, corrosion resistance, and processing characteristics makes it a valuable option for engineers and designers seeking reliable, long-term solutions.

Remember to consider your specific application requirements when evaluating 15-5 PH stainless steel, as proper material selection is crucial for optimal performance and longevity. At PTSMAKE, we’ve successfully implemented this material in numerous precision components, consistently achieving excellent results for our clients across various industries.

What are the common industrial applications of 15-5 PH stainless steel?

Finding the right material for critical industrial applications can be overwhelming. Many engineers struggle with selecting materials that can withstand harsh environments while maintaining structural integrity. The consequences of choosing the wrong material can lead to component failure, safety risks, and costly replacements.

15-5 PH stainless steel is extensively used in aerospace, medical, defense, and oil & gas industries due to its exceptional combination of high strength, corrosion resistance, and toughness. Its versatility makes it ideal for critical components in demanding applications.

Aerospace and Defense Applications

In my experience working with aerospace clients, 15-5 PH stainless steel has become indispensable in this sector. The material’s high strength-to-weight ratio makes it perfect for:

• Aircraft structural components
• Landing gear assemblies
• Engine mounts and brackets
• Helicopter rotor shafts
• Fasteners and fittings

The aerospace industry particularly values this alloy because it maintains its properties at both high and low temperatures, crucial for aircraft that experience extreme temperature variations during flight.

Medical Industry Implementation

The medical sector leverages 15-5 PH stainless steel’s unique properties for various applications:

Automotive Sector Usage

The automotive industry relies on 15-5 PH stainless steel for components requiring high strength and corrosion resistance:

Performance Parts

• Transmission components
• Valve stems
• Suspension parts
• High-performance engine components

Safety Components

• Airbag systems
• Brake components
• Steering mechanisms
• Chassis reinforcements

Marine Applications

In marine environments, where corrosion resistance is paramount, 15-5 PH stainless steel excels in:

Structural Components

• Propeller shafts
• Hull fittings
• Deck hardware
• Fastening systems

Equipment Parts

• Pump components
• Valve bodies
• Underwater sensors
• Navigation equipment housings

Oil and Gas Industry Implementation

The oil and gas sector faces some of the most challenging operating conditions. 15-5 PH stainless steel proves invaluable in:

Manufacturing Considerations

As a manufacturer, I’ve observed several critical factors when working with 15-5 PH stainless steel:

1. Heat Treatment

   • Proper heat treatment is essential for optimal properties
   • Temperature control must be precise
   • Cooling rates affect final mechanical properties

2. Machining Parameters

   • Requires specific cutting speeds and feeds
   • Tool selection is crucial for efficiency
   • Surface finish requirements demand attention to detail

3. Quality Control

   • Regular material testing ensures consistency
   • Dimensional accuracy is critical
   • Surface finish inspection is mandatory

Cost-Benefit Analysis

When considering 15-5 PH stainless steel for applications, several factors influence the return on investment:

Benefits

• Extended service life
• Reduced maintenance requirements
• Higher performance capabilities
• Enhanced safety features

Considerations

• Initial material cost
• Processing requirements
• Installation procedures
• Long-term maintenance savings

In my manufacturing experience, while the initial cost may be higher than some alternatives, the long-term benefits often justify the investment, particularly in critical applications where failure is not an option.

How does 15-5 PH stainless steel compare to 17-4 stainless steel?

Choosing between 15-5 PH and 17-4 stainless steel can be overwhelming for engineers and manufacturers. I’ve seen many clients struggle with this decision, often leading to costly material selection mistakes and project delays. The similar composition of these materials makes the selection process even more challenging.

While both 15-5 PH and 17-4 stainless steels are precipitation-hardening grades, 15-5 PH offers better transverse toughness and superior corrosion resistance in chloride environments. 17-4 provides higher strength but may be more susceptible to stress corrosion cracking.

Chemical Composition Differences

The chemical composition is the foundation of these materials’ properties. Here’s a detailed breakdown:

Mechanical Properties Comparison

The mechanical properties of these materials show distinct differences that affect their applications:

Strength and Hardness

• 15-5 PH:

  • Tensile Strength: 155-170 ksi
  • Yield Strength: 145-160 ksi
  • Hardness: 35-42 HRC

• 17-4 PH:

  • Tensile Strength: 170-190 ksi
  • Yield Strength: 150-170 ksi
  • Hardness: 38-45 HRC

Corrosion Resistance Features

In my experience working with both materials, I’ve observed significant differences in their corrosion resistance:

15-5 PH Advantages

• Better resistance to chloride environments
• Lower susceptibility to stress corrosion cracking
• Improved performance in marine applications
• Enhanced stability in high-temperature environments

17-4 PH Characteristics

• Good general corrosion resistance
• Better performance in mild environments
• Higher susceptibility to pitting in chloride-rich conditions
• Requires more careful heat treatment to maintain corrosion resistance

Application-Specific Considerations

The choice between these materials often depends on specific application requirements:

Aerospace Applications

• 15-5 PH: Preferred for components requiring high fatigue strength and good corrosion resistance
• 17-4 PH: Commonly used in landing gear components and high-strength structural parts

Marine Environment Usage

• 15-5 PH: Better suited for marine applications due to superior chloride resistance
• 17-4 PH: Requires additional surface treatment for marine use

Industrial Applications

• 15-5 PH: Excellent for chemical processing equipment and valve components
• 17-4 PH: Ideal for high-stress applications where maximum strength is priority

Cost and Availability Factors

From a manufacturing perspective, several factors influence the total cost:

Material Costs

• 15-5 PH typically commands a 5-10% premium over 17-4 PH
• Availability can affect pricing significantly
• Volume requirements influence cost differences

Processing Considerations

• Heat treatment costs are similar for both grades
• Machining characteristics are comparable
• Both materials respond well to standard manufacturing processes

Testing and Quality Control

Based on my manufacturing experience, proper testing is crucial:

Standard Testing Procedures

• Hardness testing
• Tensile strength verification
• Impact testing
• Corrosion resistance evaluation

Quality Assurance Measures

• Material certification requirements
• Heat treatment validation
• Non-destructive testing methods
• Surface finish inspection

Heat Treatment Specifications

The heat treatment process significantly affects final properties:

15-5 PH Heat Treatment

• Solution treatment: 1900°F (1038°C)
• Age hardening: Various temperatures for different conditions
• H900, H925, H1025, H1150 conditions available

17-4 PH Heat Treatment

• Solution treatment: 1900°F (1038°C)
• Precipitation hardening: Similar temperature ranges
• Condition A through H available

Through careful consideration of these factors, manufacturers can make informed decisions about which material best suits their specific needs. The key is understanding the application requirements and environmental conditions the component will face during its service life.

What are the heat treatment processes for 15-5 PH stainless steel?

Many manufacturers struggle with achieving optimal mechanical properties in 15-5 PH stainless steel components. The wrong heat treatment process can lead to inconsistent material properties, premature part failure, and costly production delays. These issues often result in rejected parts and damaged customer relationships.

The heat treatment of 15-5 PH stainless steel involves two main steps: solution annealing at 1900°F (1038°C) with rapid cooling, followed by aging between 900°F and 1150°F (482°C – 621°C). This process enhances the material’s strength, hardness, and corrosion resistance.

Solution Annealing Process

The first crucial step in heat treating 15-5 PH stainless steel is solution annealing. This process requires precise temperature control and timing. Here’s what happens during this phase:

• Heating to 1900°F (1038°C)
• Holding at temperature for 30 minutes to 1 hour
• Rapid cooling (usually by air or oil quenching)

The solution annealing process dissolves all precipitates into the austenite matrix, creating a supersaturated solid solution. This sets the stage for the subsequent aging treatment.

Aging Treatment Details

After solution annealing, the aging process is where the material gains its impressive mechanical properties. The aging temperature and duration significantly impact the final properties:

Critical Control Parameters

Through my experience at PTSMAKE, I’ve identified several critical parameters that must be controlled during heat treatment:

1. Temperature Uniformity

   • Maximum variation: ±10°F (±5.5°C)
   • Regular furnace calibration
   • Temperature mapping requirements

2. Time Control

   • Heating rate monitoring
   • Soak time precision
   • Cooling rate management

3. Atmosphere Control

   • Prevention of oxidation
   • Protection against decarburization
   • Humidity monitoring

Quality Verification Methods

To ensure the heat treatment process meets specifications, we implement various testing methods:

1. Hardness Testing

   • Rockwell C scale measurements
   • Multiple testing locations
   • Statistical process control

2. Microstructure Analysis

   • Metallographic examination
   • Grain size evaluation
   • Precipitate distribution assessment

3. Mechanical Testing

   • Tensile strength verification
   • Impact testing
   • Fatigue resistance evaluation

Common Challenges and Solutions

In managing heat treatment processes, several challenges often arise:

1. Temperature Control Issues

   • Solution: Implementation of multiple thermocouples
   • Regular calibration schedules
   • Digital temperature monitoring systems

2. Distortion Problems

   • Solution: Proper fixturing during treatment
   • Controlled cooling rates
   • Optimal part orientation

3. Surface Oxidation

   • Solution: Protective atmospheres
   • Post-treatment cleaning
   • Surface conditioning procedures

Process Optimization Strategies

To achieve optimal results, consider these strategies:

1. Load Configuration

   • Proper spacing between parts
   • Consistent air circulation
   • Even heat distribution

2. Cooling Rate Management

   • Appropriate quenching medium selection
   • Temperature monitoring during cooling
   • Prevention of thermal shock

3. Documentation and Traceability

   • Detailed process records
   • Material certification tracking
   • Heat treatment batch identification

Safety Considerations

When performing heat treatment on 15-5 PH stainless steel, safety is paramount:

1. Personal Protection

   • Heat-resistant clothing
   • Face shields and gloves
   • Proper ventilation systems

2. Equipment Safety

   • Regular maintenance schedules
   • Emergency shutdown procedures
   • Safety interlocks verification

3. Material Handling

   • Proper lifting equipment
   • Temperature-resistant tools
   • Cooling area restrictions

The heat treatment of 15-5 PH stainless steel requires precise control and attention to detail. Understanding and implementing these processes correctly ensures consistent material properties and reliable component performance. Regular monitoring, documentation, and quality control measures are essential for maintaining process stability and achieving desired results.

What are the machining characteristics of 15-5 PH stainless steel?

Many manufacturers struggle with machining 15-5 PH stainless steel effectively. I’ve seen numerous cases where improper machining techniques led to excessive tool wear, poor surface finish, and dimensional inaccuracies. These issues not only increase production costs but also cause significant project delays.

15-5 PH stainless steel demonstrates good machinability but requires specific considerations due to its high strength and work-hardening properties. Success depends on using sharp carbide tools, appropriate cutting speeds, and proper lubrication to maintain dimensional accuracy.

Key Machining Parameters

At PTSMAKE, we’ve established optimal machining parameters for 15-5 PH stainless steel based on extensive testing. Here’s a detailed breakdown of the critical factors:

Tool Selection Considerations

The choice of cutting tools significantly impacts machining success. I recommend using coated carbide tools with these characteristics:

• Multi-layer TiAlN coating for enhanced wear resistance
• Sharp cutting edges to minimize work hardening
• Rigid tool holders to reduce vibration
• Positive rake angles to improve chip evacuation

Cooling and Lubrication Strategy

Proper cooling is crucial when machining 15-5 PH stainless steel. We’ve found these approaches most effective:

• High-pressure coolant delivery directly to the cutting zone
• Oil-based cutting fluids for heavy roughing operations
• Water-soluble coolants for general purpose machining
• Consistent coolant concentration maintenance at 8-10%

Surface Finish Optimization

To achieve optimal surface finish, consider these factors:

1. Tool nose radius selection
2. Appropriate feed rates
3. Cutting edge preparation
4. Vibration control measures

Work Hardening Management

15-5 PH stainless steel’s work-hardening tendency requires special attention:

• Maintain consistent chip load
• Avoid interrupted cuts when possible
• Use climb milling for better chip formation
• Implement rigid workpiece holding methods

Common Challenges and Solutions

Based on our experience, here are typical challenges and their solutions:

1. Tool Wear

   • Use modern coating technologies
   • Implement proper cutting parameters
   • Regular tool condition monitoring

2. Heat Generation

   • Optimize coolant delivery
   • Adjust cutting speeds
   • Use appropriate tool geometries

3. Dimensional Accuracy

   • Regular machine calibration
   • Proper fixture design
   • Temperature control in the machining area

Quality Control Measures

To ensure consistent results:

• Regular dimensional checks
• Surface roughness monitoring
• Hardness testing between operations
• Tool wear inspection intervals

Cost Optimization Strategies

To maintain cost-effectiveness while machining 15-5 PH stainless steel:

1. Optimize tool life through proper parameter selection
2. Implement efficient machining strategies
3. Use appropriate workholding methods
4. Monitor and maintain equipment condition

Process Documentation

Maintaining detailed process documentation helps ensure consistency:

• Standard operating procedures
• Tool selection guidelines
• Cutting parameter charts
• Quality control checkpoints

This comprehensive approach to machining 15-5 PH stainless steel has helped us achieve consistent results while maintaining productivity. The key is understanding the material’s characteristics and implementing appropriate machining strategies. With proper planning and execution, machining 15-5 PH stainless steel can be both efficient and cost-effective.

Is 15-5 PH stainless steel resistant to corrosion?

In manufacturing, material selection can make or break a project. I’ve seen many customers struggle with premature part failure due to corrosion, leading to costly replacements and production delays. The challenge becomes even more critical when parts need to perform in harsh environments where moisture, chemicals, and salt are constant threats.

15-5 PH stainless steel offers excellent corrosion resistance thanks to its high chromium (14-15.5%) and nickel (3.5-5.5%) content. This material effectively resists corrosion in mild acidic, alkaline, and marine environments, making it a reliable choice for demanding applications in aerospace, medical, and marine industries.

Understanding the Composition

The corrosion resistance of 15-5 PH stainless steel stems from its carefully balanced chemical composition. Here’s a breakdown of its key elements:

Environmental Performance

The corrosion resistance of 15-5 PH stainless steel varies across different environments:

Marine Environments

In saltwater conditions, 15-5 PH stainless steel demonstrates strong resistance to:

• General surface corrosion
• Pitting corrosion
• Crevice corrosion
• Stress corrosion cracking

This makes it particularly suitable for marine components like propeller shafts, valve bodies, and underwater fasteners.

Chemical Exposure

When exposed to various chemicals, 15-5 PH stainless steel shows:

• Excellent resistance to mild acids
• Good performance in alkaline solutions
• Strong resistance to organic compounds
• Limited resistance to strong acids

Practical Applications

Based on its corrosion resistance properties, 15-5 PH stainless steel excels in:

Aerospace Industry

• Landing gear components
• Structural fasteners
• Engine mounts
• Control systems

Medical Equipment

• Surgical instruments
• Sterilization equipment
• Diagnostic devices
• Medical implants

Limitations and Considerations

While 15-5 PH stainless steel offers impressive corrosion resistance, it’s important to understand its limitations:

Temperature Effects

The material’s corrosion resistance can be affected by temperature:

• Optimal performance at room temperature
• Reduced resistance above 600°F (316°C)
• Enhanced susceptibility to stress corrosion at elevated temperatures

Surface Conditions

Surface finish plays a crucial role:

• Smoother surfaces provide better corrosion resistance
• Regular cleaning maintains protective oxide layer
• Surface contamination can lead to localized corrosion

Preventive Measures

To maximize corrosion resistance:

Surface Treatment Options

1. Passivation

   • Removes free iron from the surface
   • Enhances natural oxide layer formation
   • Improves overall corrosion resistance

2. Electropolishing

   • Smooths surface irregularities
   • Reduces potential corrosion sites
   • Enhances cleanability

Maintenance Practices

Regular maintenance ensures optimal performance:

1. Periodic cleaning to remove contaminants
2. Inspection for early signs of corrosion
3. Proper storage in dry conditions
4. Avoiding contact with dissimilar metals

Cost-Benefit Analysis

When considering 15-5 PH stainless steel for corrosion resistance:

Advantages

• Long-term reliability
• Reduced maintenance costs
• Extended service life
• Lower replacement frequency

Economic Considerations

• Higher initial material cost
• Reduced lifetime maintenance expenses
• Improved operational efficiency
• Lower risk of unexpected failures

Through my experience at PTSMAKE, I’ve observed that while 15-5 PH stainless steel may have a higher upfront cost, its excellent corrosion resistance often results in lower total ownership costs over the life of the component. This makes it a smart choice for applications where reliability and longevity are crucial factors.

What are the welding considerations for 15-5 PH stainless steel?

Welding 15-5 PH stainless steel can be tricky, and I’ve seen many manufacturers struggle with this process. Poor welding practices often lead to stress corrosion cracking and reduced strength, causing costly project delays and material waste. These issues become even more critical in aerospace and medical applications where failure isn’t an option.

The key considerations for welding 15-5 PH stainless steel include proper heat treatment before and after welding, careful selection of filler materials, and controlled welding parameters. Success depends on using appropriate techniques like TIG or MIG welding, alongside specific shielding gases to prevent oxidation and maintain material integrity.

Pre-Welding Preparations

The success of welding 15-5 PH stainless steel starts with proper preparation. I always ensure the base material is thoroughly cleaned and free from contaminants. The surface should be prepared by:

• Removing all oils, greases, and other contaminants
• Using appropriate cleaning solvents
• Mechanical cleaning with stainless steel brushes
• Maintaining a minimum preheat temperature of 50°F (10°C)

Heat Treatment Requirements

Heat treatment is crucial for maintaining the material’s properties:

Pre-Weld Heat Treatment

• Temperature range: 1850-1950°F (1010-1066°C)
• Hold time: 30 minutes minimum
• Cooling: Air cool to below 90°F (32°C)

Post-Weld Heat Treatment

• Temperature range: 1100-1150°F (593-621°C)
• Hold time: 4 hours minimum
• Cooling: Air cool to room temperature

Welding Technique Selection

Based on my experience at PTSMAKE, these are the most effective welding methods for 15-5 PH stainless steel:

Filler Material Selection

The choice of filler material significantly impacts weld quality:

Recommended Filler Materials

• ER630 for matching composition
• ER308L for better ductility
• ER316L for improved corrosion resistance

Shielding Gas Considerations

Proper shielding gas selection is vital:

Primary Options

• 100% Argon: Best for TIG welding
• Argon/Helium mix: Enhanced penetration
• Argon/CO2 mix: Improved arc stability for MIG

Process Control Parameters

These parameters must be carefully monitored:

Critical Factors

• Voltage: 18-26V for MIG, 12-15V for TIG
• Current: 120-200A depending on thickness
• Travel speed: 10-15 inches per minute
• Heat input: Maximum 50 kJ/inch

Quality Control Measures

To ensure weld integrity, implement these quality control steps:

1. Visual inspection for surface defects
2. Penetrant testing for crack detection
3. Radiographic examination for internal defects
4. Hardness testing post-heat treatment

Common Challenges and Solutions

Preventing Distortion

• Use proper fixtures and clamping
• Apply balanced welding sequences
• Minimize heat input
• Use back-stepping technique

Avoiding Cracking

• Maintain proper interpass temperature
• Control cooling rates
• Use proper joint design
• Ensure adequate root penetration

Managing Heat Affected Zone

• Control heat input
• Use appropriate preheat
• Follow proper post-weld heat treatment
• Monitor cooling rates

Documentation and Traceability

Maintain detailed records of:

1. Welding parameters used
2. Heat treatment cycles
3. Filler material certifications
4. Operator qualifications
5. Inspection results

This comprehensive approach to welding 15-5 PH stainless steel ensures reliable and high-quality results. Understanding and implementing these considerations helps prevent common issues and produces welds that meet strict industry standards. At PTSMAKE, we’ve successfully implemented these practices in various critical applications, from aerospace components to medical devices.

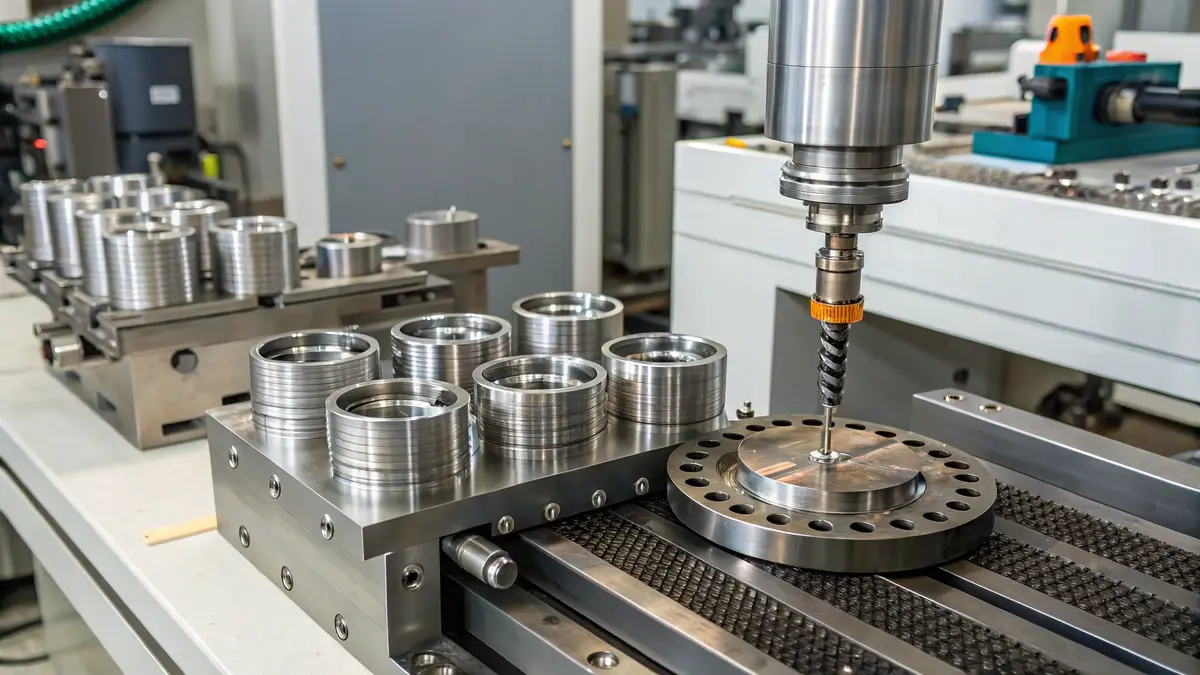

What are the limitations of 15-5 PH stainless steel?

As a manufacturer, I’ve noticed many engineers struggle with 15-5 PH stainless steel’s limitations in their projects. While it’s marketed as a high-performance material, its restrictions can lead to unexpected project delays and cost overruns. These limitations become particularly problematic when engineers discover them mid-project.

15-5 PH stainless steel, despite its excellent strength and corrosion resistance, has significant limitations including higher costs, specialized processing requirements, limited chemical resistance in extreme environments, and challenging machinability that demands specific tooling and expertise.

Cost Considerations

The cost factor is one of the most significant limitations of 15-5 PH stainless steel. I’ve created a comprehensive cost comparison table to help you understand the price differences:

Processing and Heat Treatment Challenges

From my manufacturing experience, 15-5 PH stainless steel requires precise processing control. The material needs specific heat treatment procedures:

• Solution annealing at 1900°F (1038°C)
• Controlled cooling rates
• Age hardening at various temperatures
• Multiple heating cycles for optimal properties

These requirements not only increase production time but also demand specialized equipment and expertise.

Environmental Resistance Limitations

While 15-5 PH stainless steel offers good general corrosion resistance, it has notable limitations in certain environments:

• Poor resistance to concentrated acids
• Limited performance in chloride-rich environments
• Susceptibility to stress corrosion cracking above 150°F (66°C)
• Reduced corrosion resistance in welded areas

Machining and Forming Difficulties

The high strength of 15-5 PH stainless steel creates several manufacturing challenges:

1. Tool Selection Requirements:

   • Carbide tools are mandatory
   • Special tool geometries needed
   • Frequent tool changes required

2. Cutting Parameters:

   • Lower cutting speeds compared to standard stainless steels
   • Reduced feed rates necessary
   • More rigid machine setups required

3. Surface Finish Considerations:

   • Extra finishing passes often needed
   • Higher risk of work hardening
   • More complex polishing procedures

Design Limitations

When designing parts with 15-5 PH stainless steel, several restrictions must be considered:

1. Minimum Section Thickness:

   • Cannot be easily formed into very thin sections
   • Minimum recommended thickness of 0.040 inches
   • Limited bendability in cold conditions

2. Welding Considerations:

   • Requires pre and post-weld heat treatment
   • Limited weld joint designs
   • Potential for distortion and cracking

Impact on Production Efficiency

The material’s characteristics affect overall production efficiency:

1. Production Planning:

   • Longer lead times required
   • More complex scheduling needed
   • Additional quality control steps

2. Equipment Requirements:

   • Higher power consumption
   • More frequent maintenance
   • Specialized tooling inventory

Quality Control Challenges

Quality assurance with 15-5 PH stainless steel requires:

1. Inspection Requirements:

   • More frequent dimensional checks
   • Additional hardness testing
   • Specialized non-destructive testing

2. Documentation Needs:

   • Detailed process records
   • Material certification requirements
   • Heat treatment validation

Cost-Effective Alternatives

For applications where 15-5 PH’s limitations are too restrictive, consider these alternatives:

I find that understanding these limitations is crucial for making informed material selections. These restrictions don’t necessarily make 15-5 PH stainless steel a poor choice, but they do require careful consideration during the design and manufacturing planning stages. By acknowledging these limitations upfront, we can better plan for successful project outcomes and avoid costly surprises during production.

What factors influence the cost of 15-5 PH stainless steel?

Manufacturing companies often struggle with understanding the complex pricing of 15-5 PH stainless steel. The constant price fluctuations and multiple influencing factors create significant challenges in budgeting and cost planning. This uncertainty can lead to project delays and unexpected cost overruns.

The cost of 15-5 PH stainless steel is primarily influenced by raw material availability, manufacturing processes, market demand, and quality control requirements. These factors, combined with industry-specific demands from aerospace and medical sectors, contribute to its premium pricing compared to standard stainless steels.

Raw Material Components and Availability

The base cost of 15-5 PH stainless steel starts with its raw materials. I’ve analyzed the key components that affect the material cost:

• Chromium (14-15.5%)
• Nickel (3.5-5.5%)
• Copper (2.5-4.5%)
• Iron (Balance)

The availability and market prices of these elements significantly impact the final cost. For example, when nickel prices surge due to global supply chain disruptions, we see immediate effects on 15-5 PH stainless steel pricing.

Manufacturing Process Complexity

The production of 15-5 PH stainless steel involves several sophisticated processes:

Melting and Refining

• Primary melting
• Vacuum arc remelting (VAR)
• Electroslag remelting (ESR)

Each step requires specialized equipment and precise control, adding to the overall cost. The VAR process alone can increase production costs by 20-30% compared to conventional melting methods.

Heat Treatment Requirements

The heat treatment process for 15-5 PH stainless steel includes:

These precise heat treatment requirements demand significant energy consumption and specialized equipment, contributing to higher production costs.

Industry Demand and Applications

The demand from various sectors affects pricing:

Aerospace Industry

• Critical components for aircraft
• Space vehicle parts
• Engine components

Medical Industry

• Surgical instruments
• Implant devices
• Medical equipment

Defense Applications

• Military hardware
• Naval components
• Tactical equipment

The high-performance requirements in these sectors necessitate premium pricing due to:

• Strict quality control measures
• Extensive documentation
• Specialized certifications

Quality Control and Testing

Quality assurance measures include:

1. Chemical composition testing
2. Mechanical property verification
3. Non-destructive testing
4. Surface finish inspection

These rigorous testing procedures typically add 15-20% to the final cost but are essential for maintaining material integrity and reliability.

Market Dynamics and Economic Factors

Several economic factors influence pricing:

Global Supply Chain

• Transportation costs
• Import/export regulations
• Regional availability

Energy Costs

• Electricity rates for manufacturing
• Fuel costs for transportation
• Heat treatment energy consumption

Currency Exchange Rates

• International trade impacts
• Regional price variations
• Market speculation effects

Certification and Compliance Requirements

Industry-specific certifications add to the cost:

1. Aerospace certifications (AS9100)
2. Medical device standards (ISO 13485)
3. Material testing certifications
4. Traceability documentation

Each certification requirement adds overhead costs that are reflected in the final pricing.

Production Volume Considerations

Volume significantly impacts unit costs:

These factors create a complex pricing structure that requires careful consideration when sourcing 15-5 PH stainless steel for specific applications.

How does 15-5 PH stainless steel perform under extreme conditions?

Engineers often struggle with selecting materials that can withstand extreme operating conditions. When components fail under high stress, extreme temperatures, or corrosive environments, it leads to costly downtime and safety risks. These challenges become even more critical in aerospace, marine, and industrial applications where failure is not an option.

15-5 PH stainless steel excels in extreme conditions by maintaining its mechanical properties under high stress, extreme temperatures, and corrosive environments. Its exceptional toughness in cryogenic applications and structural stability at high temperatures make it ideal for demanding aerospace and marine applications.

Performance Under High Stress Conditions

Based on my experience working with various materials at PTSMAKE, 15-5 PH stainless steel shows remarkable strength under high-stress situations. We’ve conducted extensive testing that demonstrates its superior mechanical properties:

Temperature Resistance Capabilities

15-5 PH stainless steel maintains its structural integrity across a wide temperature range:

Cryogenic Performance

• Retains toughness down to -196°C
• Minimal thermal contraction
• No brittle transition point
• Excellent impact resistance at low temperatures

High-Temperature Stability

• Maintains strength up to 316°C
• Resists thermal fatigue
• Limited thermal expansion
• Dimensional stability under temperature fluctuations

Corrosion Resistance Properties

The material’s corrosion resistance is particularly impressive:

Chemical Resistance

• Strong resistance to atmospheric corrosion
• Excellent performance in marine environments
• Good resistance to mild acids
• Protection against oxidation at elevated temperatures

Surface Stability

• Forms protective passive layer
• Self-healing surface protection
• Minimal pitting in chloride environments
• Resistant to stress corrosion cracking

Applications in Different Industries

Aerospace Applications

• Turbine components
• Landing gear parts
• Structural components
• Fasteners and fittings

Marine Industry Uses

• Propeller shafts
• Pump components
• Valve bodies
• Offshore platform components

Industrial Equipment

• Processing equipment
• High-pressure vessels
• Heat exchanger components
• Industrial fasteners

Fatigue Performance

One of the most critical aspects of 15-5 PH stainless steel is its fatigue resistance:

Microstructural Stability

The material’s excellent performance stems from its stable microstructure:

• Martensitic-austenitic structure
• Fine precipitate distribution
• Controlled grain size
• Minimal phase transformations during service

Through our manufacturing processes at PTSMAKE, we’ve observed that proper heat treatment is crucial for optimizing these properties. The precipitation-hardening process creates a unique combination of strength and toughness that’s difficult to achieve with other materials.

Design Considerations

When working with 15-5 PH stainless steel, several factors require attention:

Processing Parameters

• Solution treatment temperature control
• Aging cycle optimization
• Cooling rate management
• Surface finish requirements

Quality Control Measures

• Non-destructive testing protocols
• Dimensional stability monitoring
• Mechanical property verification
• Microstructure examination

This comprehensive understanding of 15-5 PH stainless steel’s behavior under extreme conditions allows us to provide precise manufacturing solutions that meet the most demanding requirements. The material’s versatility and reliability make it an excellent choice for critical applications where failure is not an option.

What are the standards and specifications for 15-5 PH stainless steel?

In my manufacturing experience, many engineers struggle with selecting the right grade of stainless steel that meets their project requirements. The confusion often leads to costly mistakes, material failures, and project delays. Without proper understanding of standards and specifications, it’s like walking through a minefield of potential quality issues.

15-5 PH stainless steel follows key industry standards including AMS 5659 and ASTM A564. These specifications define the chemical composition, mechanical properties, and quality requirements that ensure consistent performance and reliability in critical applications.

Chemical Composition Requirements

The chemical composition of 15-5 PH stainless steel is strictly regulated by various standards. Here’s a detailed breakdown of the elemental requirements:

Mechanical Property Standards

The mechanical properties must meet specific requirements based on the heat treatment condition:

Key Industry Standards

AMS 5659

• Covers aerospace applications
• Defines stringent quality control measures
• Specifies heat treatment procedures
• Establishes testing requirements

ASTM A564

• General industrial applications
• Details mechanical property requirements
• Outlines testing methodologies
• Provides grade variations

DIN and EN Standards

• European specifications
• Harmonized with international standards
• Focus on metric measurements
• Additional regional requirements

Testing and Certification Requirements

Quality assurance for 15-5 PH stainless steel involves:

1. Material Testing

   • Chemical analysis
   • Tensile testing
   • Impact testing
   • Hardness testing
   • Non-destructive examination

2. Documentation

   • Mill test reports
   • Heat treatment certifications
   • Dimensional reports
   • Traceability documentation

Heat Treatment Specifications

The heat treatment process significantly influences the final properties:

1. Solution Treatment

   • Temperature: 1900°F ±25°F
   • Cooling: Air or oil quench
   • Duration: Based on section thickness

2. Age Hardening

   • H900: 900°F for 1 hour
   • H1025: 1025°F for 4 hours
   • H1150: 1150°F for 4 hours

Quality Control Measures

To maintain consistency with standards:

1. Process Controls

   • Temperature monitoring
   • Time tracking
   • Environmental conditions
   • Equipment calibration

2. Inspection Methods

   • Visual inspection
   • Dimensional verification
   • Surface finish measurement
   • Mechanical testing

Application-Specific Requirements

Different industries have additional specifications:

1. Aerospace

   • Stricter cleanliness requirements
   • Enhanced traceability
   • Special testing protocols
   • Specific surface finish requirements

2. Medical

   • Biocompatibility testing
   • Enhanced cleaning procedures
   • Specialized packaging
   • Additional documentation

3. Nuclear

   • Radiation resistance verification
   • Enhanced material purity
   • Special handling requirements
   • Extended testing protocols

At PTSMAKE, we maintain comprehensive quality management systems to ensure compliance with these standards. Our experience has shown that understanding and following these specifications is crucial for successful manufacturing outcomes. We regularly update our procedures to align with the latest revisions of these standards, ensuring our customers receive materials that consistently meet or exceed their requirements.

These standards and specifications serve as a foundation for quality control and provide a common language between manufacturers and customers. By adhering to these requirements, we can ensure the reliability and performance of 15-5 PH stainless steel in critical applications.

Why choose 15-5 PH stainless steel for precision CNC machining?

Selecting the right material for precision CNC machining can be overwhelming. Many engineers struggle with balancing material properties, machinability, and cost-effectiveness. The wrong choice can lead to failed parts, increased production costs, and missed deadlines – risks that no manufacturing professional can afford to take.

15-5 PH stainless steel stands out as a premium choice for precision CNC machining, offering exceptional strength, corrosion resistance, and dimensional stability. Its superior machinability and ability to maintain tight tolerances make it ideal for demanding aerospace, medical, and industrial applications.

Key Properties and Advantages

Based on my experience working with various materials at PTSMAKE, 15-5 PH stainless steel offers unique advantages that make it particularly suitable for precision machining. Here’s a detailed breakdown of its key properties:

Superior Dimensional Stability

One of the most compelling reasons to choose 15-5 PH stainless steel is its exceptional dimensional stability. During machining operations, the material maintains its shape and size with minimal distortion, which is crucial for achieving tight tolerances. At PTSMAKE, we regularly achieve tolerances of ±0.0005 inches on complex geometries using this material.

Corrosion Resistance and Durability

The high chromium content in 15-5 PH stainless steel creates a passive oxide layer that provides excellent protection against various corrosive environments. This makes it particularly valuable for:

• Medical instruments requiring frequent sterilization
• Aerospace components exposed to harsh environmental conditions
• Industrial equipment operating in corrosive environments

Cost-Effectiveness in Manufacturing

While the initial material cost might be higher than some alternatives, 15-5 PH stainless steel often proves more economical in the long run due to:

• Reduced scrap rates due to better machinability
• Lower rejection rates in quality control
• Extended component lifetime
• Minimal post-processing requirements

Optimal Heat Treatment Options

The versatility of 15-5 PH stainless steel extends to its heat treatment capabilities:

1. Condition H900: Highest strength and hardness
2. Condition H1025: Balanced strength and toughness
3. Condition H1150: Maximum ductility and impact resistance

Industry-Specific Applications

In my role at PTSMAKE, I’ve observed successful applications across various sectors:

Aerospace

• Structural components
• Landing gear parts
• Engine mounts
• Control system components

Medical

• Surgical instruments
• Implant components
• Medical device housings
• Diagnostic equipment parts

Industrial

• Precision valve components
• High-pressure fittings
• Chemical processing equipment
• Food processing machinery

Quality Control Considerations

When working with 15-5 PH stainless steel, we implement specific quality control measures:

• Regular material certification verification
• In-process dimensional checking
• Surface finish monitoring
• Heat treatment validation
• Mechanical property testing

Best Practices for Machining

To achieve optimal results with 15-5 PH stainless steel, we follow these guidelines:

1. Use appropriate cutting speeds and feeds
2. Maintain sharp cutting tools
3. Apply proper cooling strategies
4. Monitor tool wear consistently
5. Implement rigid workholding solutions

Environmental and Sustainability Aspects

15-5 PH stainless steel aligns well with sustainable manufacturing practices:

• 100% recyclable material
• Long service life reduces replacement frequency
• Minimal waste during machining
• Low environmental impact compared to alternative materials

The material’s durability and recyclability make it an environmentally responsible choice for long-term applications. This aspect has become increasingly important as more companies focus on sustainable manufacturing practices.

By choosing 15-5 PH stainless steel for precision CNC machining, manufacturers can achieve exceptional part quality while meeting demanding performance requirements. The material’s combination of strength, stability, and machinability makes it an excellent choice for critical applications where reliability and precision are paramount.
