What is Plastic Injection Molding and How Does It Work?

Have you ever wondered how everyday plastic products, from your smartphone case to car parts, are made with such incredible precision? Many manufacturers struggle with producing complex plastic parts efficiently while maintaining quality and keeping costs down. The challenge becomes even more daunting when dealing with high-volume production requirements and intricate design specifications.

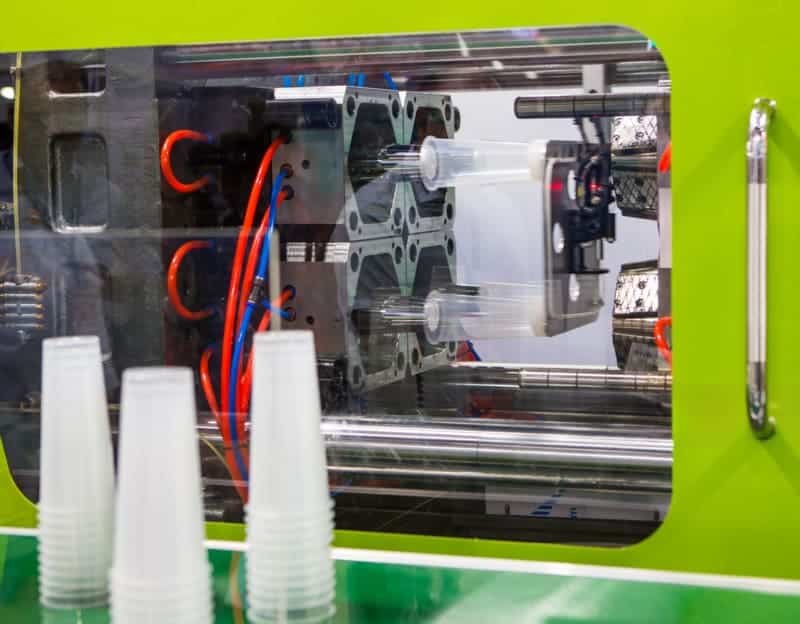

Plastic injection molding is a manufacturing process that transforms plastic pellets into precisely formed parts by injecting molten plastic into a custom-designed mold cavity. Once cooled and solidified, the part is ejected, creating exact replicas with consistent quality and minimal waste.

Understanding the Basic Process

The plastic injection molding process follows a carefully controlled sequence that ensures consistent quality. At PTSMAKE, we’ve refined this process to achieve optimal results for our clients. The process begins with the thermoplastic resin¹ pellets being fed into the injection molding machine’s hopper.

The basic steps include:

1. Material Preparation
2. Melting and Injection
3. Cooling and Solidification
4. Part Ejection
5. Quality Control

Key Components of an Injection Molding Machine

The success of injection molding relies heavily on the precise operation of several crucial components:

Hopper

• Stores plastic pellets
• Controls material feed rate
• Prevents contamination
• Maintains consistent material flow

Barrel and Screw

• Heats and melts plastic material
• Ensures uniform material mixing
• Controls injection pressure
• Maintains temperature stability

Mold System

• Creates part geometry
• Controls cooling process
• Manages material flow
• Ensures part quality

Applications Across Industries

The versatility of injection molding makes it invaluable across various sectors:

Advantages of Injection Molding

Production Efficiency

• High-volume capability
• Fast cycle times
• Automated operation
• Minimal waste generation

Quality and Consistency

• Precise part replication
• Excellent surface finish
• Tight tolerances
• Structural integrity

Design Flexibility

• Complex geometries possible
• Multiple material options
• Various surface textures
• Color customization

Cost-Effectiveness

• Low per-part costs at volume
• Minimal material waste
• Reduced labor requirements
• Long-term mold durability

Material Selection Considerations

Choosing the right material is crucial for successful injection molding. Common materials include:

1. ABS (Acrylonitrile Butadiene Styrene)

   • High impact resistance
   • Good surface finish
   • Excellent dimensional stability

2. Polypropylene (PP)

   • Chemical resistance
   • Lightweight
   • Cost-effective

3. Polycarbonate (PC)

   • High strength
   • Optical clarity
   • Heat resistance

4. Nylon (PA)

   • Wear resistance
   • Strength and durability
   • Chemical resistance

Quality Control Measures

To maintain consistent quality, we implement several control measures:

1. Pre-production Testing

   • Material verification
   • Mold flow analysis
   • Process parameter optimization

2. In-process Monitoring

   • Temperature control
   • Pressure monitoring
   • Cycle time tracking

3. Post-production Inspection

   • Dimensional verification
   • Visual inspection
   • Functional testing

The importance of plastic injection molding in modern manufacturing cannot be overstated. It combines efficiency, precision, and scalability in a way that few other manufacturing processes can match. As technology continues to advance, this versatile process will remain at the forefront of plastic part production, enabling innovations across numerous industries.

How Does the Injection Molding Process Work?

Have you ever wondered why some plastic products have inconsistent quality or fail prematurely? Many manufacturers struggle with defective parts, material waste, and production delays because they don’t fully understand the injection molding process. These issues not only increase costs but also damage customer relationships and brand reputation.

The injection molding process works through a systematic sequence of steps: material preparation, heating and injection, cooling, and part ejection. This precise manufacturing method uses controlled temperature, pressure, and timing to transform plastic pellets into high-quality finished products.

Material Selection and Preparation

The journey begins with choosing the right material. I always emphasize to my clients that material selection is crucial for product success. The plastic resin must match both the product requirements and the molding parameters. We typically consider:

• Mechanical properties (strength, flexibility)
• Temperature resistance
• Chemical resistance
• Cost-effectiveness
• Processing characteristics

Before starting the molding process, we ensure the material is properly dried. Hygroscopic² materials require special attention to prevent quality issues during molding.

Mold Design and Setup

The mold is essentially the heart of the injection molding process. A well-designed mold includes:

• Cavity and core that form the part shape
• Runner system for material flow
• Cooling channels
• Ejection system
• Venting system

The Injection Phase

During this critical phase, several key events occur:

1. Material Heating

   • Plastic pellets are fed into the barrel
   • Heating bands melt the material
   • Screw rotation provides additional heat through friction

2. Material Injection

   • Molten plastic is pushed forward by the screw
   • Material fills the mold cavity under high pressure
   • Pressure is maintained to compensate for shrinkage

Temperature and pressure control during injection is crucial. I recommend these typical processing parameters:

Cooling and Solidification

The cooling phase determines final part quality and cycle time. Key considerations include:

• Cooling channel design and layout
• Coolant temperature and flow rate
• Part thickness and geometry
• Material crystallization characteristics

I’ve found that balanced cooling is essential for:

• Minimizing warpage
• Reducing internal stress
• Maintaining dimensional stability
• Optimizing cycle time

Part Ejection and Quality Control

The final steps involve:

1. Mold Opening

   • Occurs after sufficient cooling
   • Controlled by part thickness and material properties

2. Part Ejection

   • Mechanical ejectors push the part out
   • Robot or operator removes the part
   • Parts are collected for inspection

3. Quality Checks

   • Dimensional accuracy
   • Surface finish
   • Structural integrity
   • Visual defects

Process Parameters and Optimization

Success in injection molding requires careful control of:

1. Temperature Management

   • Barrel temperature zones
   • Mold temperature
   • Material temperature

2. Pressure Control

   • Injection pressure
   • Holding pressure
   • Back pressure

3. Timing Parameters

   • Injection time
   • Holding time
   • Cooling time
   • Overall cycle time

I regularly monitor these parameters using modern process control systems, which help maintain consistency and detect potential issues before they affect part quality. The relationship between these parameters is complex, and finding the optimal balance requires experience and systematic approach.

Through careful attention to each step and proper parameter control, the injection molding process can consistently produce high-quality plastic parts. The key is understanding how each variable affects the final product and maintaining precise control throughout the entire cycle.

What Are the Key Components of an Injection Molding Machine?

Have you ever struggled to understand why some injection molded parts fail while others succeed? Many manufacturers face challenges with inconsistent part quality and machine performance, often due to a lack of understanding of how their injection molding machines actually work. The complexity of these machines can be overwhelming, leading to costly mistakes and production delays.

An injection molding machine consists of four main components: the injection unit, clamping unit, mold, and control system. Each component plays a crucial role in transforming raw plastic pellets into finished products through a precise sequence of heating, injecting, cooling, and ejecting.

The Injection Unit: The Heart of the Machine

The injection unit is where the magic begins. It’s responsible for melting plastic pellets and injecting the molten material into the mold cavity. The key elements include:

• Feed Hopper: Stores and feeds plastic pellets into the barrel
• Barrel: Houses the reciprocating screw³ and heating bands
• Heating Bands: Maintain proper melting temperature
• Nozzle: Connects the barrel to the mold and controls material flow

I’ve found that maintaining proper temperature control in the injection unit is critical. Even a slight variation can affect material viscosity and final part quality.

The Clamping Unit: Strength and Precision

The clamping unit is essentially the muscle of the machine. It performs several vital functions:

• Holds the mold halves together during injection
• Provides the force necessary to prevent mold opening
• Controls mold opening and closing movements
• Ensures proper part ejection

Here’s a breakdown of typical clamping forces required for different part sizes:

The Mold: Where Design Meets Reality

The mold is perhaps the most critical component, as it determines the final shape and quality of the product. Key features include:

• Cavity and Core: Forms the part’s external and internal shapes
• Runner System: Channels molten plastic from nozzle to cavity
• Cooling Channels: Regulates temperature for proper solidification
• Ejector System: Removes finished parts from the mold

One aspect that often surprises my clients is the importance of proper venting in mold design. Without adequate venting, trapped air can cause burning, short shots, or other quality issues.

The Control System: The Brain of Operations

Modern injection molding machines rely heavily on sophisticated control systems. These systems manage:

• Process Parameters: Temperature, pressure, speed settings
• Injection Profile: Controls material flow rate during injection
• Cycle Timing: Coordinates all machine movements
• Quality Monitoring: Tracks critical process variables

I’ve seen significant improvements in part quality when manufacturers upgrade from basic to advanced control systems. The ability to fine-tune parameters and maintain consistency is invaluable.

Integration and Synchronization

The success of the injection molding process depends on how well these components work together. Here’s how they interact:

1. The control system signals the clamping unit to close the mold
2. Once closed, the injection unit advances and injects molten plastic
3. The control system monitors and adjusts parameters during filling
4. After cooling, the clamping unit opens and ejects the part

A proper understanding of this synchronization helps troubleshoot common issues like:

• Flash: Often related to insufficient clamping force
• Short shots: Could indicate injection unit problems
• Warpage: Might stem from cooling system inefficiencies
• Burn marks: Possibly due to inadequate venting or excessive speeds

Having worked with various machines and configurations, I’ve learned that regular maintenance of all components is crucial. A well-maintained machine will provide:

• Consistent part quality
• Reduced cycle times
• Lower scrap rates
• Extended equipment life
• Better energy efficiency

The interaction between these components creates a complex system that requires careful balance. Understanding each component’s role helps optimize the process and achieve better results in injection molding operations.

What Types of Plastics Are Used in Injection Molding?

Choosing the right plastic material for injection molding can be overwhelming. With hundreds of plastic materials available, many engineers and product designers struggle to determine which material best suits their specific application. Making the wrong choice can lead to product failures, increased costs, and project delays.

In injection molding, two main categories of plastics are used: thermoplastics and thermosets. Thermoplastics can be repeatedly melted and solidified, while thermosets permanently harden after initial heating. Common materials include ABS, polycarbonate, polypropylene, and nylon, each offering unique properties.

Understanding Thermoplastics

Thermoplastics are the most widely used materials in injection molding. They offer excellent molecular chain realignment⁴ capabilities during the heating and cooling process. I’ve found that this property makes them ideal for high-volume production runs because they can be melted, molded, and recycled multiple times without significant degradation.

Popular thermoplastics include:

Exploring Thermoset Plastics

Unlike thermoplastics, thermoset plastics undergo a chemical change when heated. Once cured, they cannot be remelted or reformed. In my experience working with manufacturers, thermosets are chosen when extreme heat resistance or superior chemical resistance is required.

Common thermoset materials include:

Material Selection Considerations

When selecting plastic materials for injection molding, I always consider these crucial factors:

1. Environmental Conditions

   • Operating temperature range
   • Chemical exposure
   • UV exposure
   • Moisture resistance

2. Mechanical Requirements

   • Impact strength
   • Tensile strength
   • Flexibility
   • Wear resistance

3. Manufacturing Parameters

   • Mold flow characteristics
   • Shrinkage rates
   • Cycle times
   • Processing temperatures

Specialized Materials and Additives

To enhance material properties, various additives can be incorporated:

1. Reinforcements

   • Glass fibers for increased strength
   • Carbon fibers for improved conductivity
   • Mineral fillers for cost reduction

2. Performance Modifiers

   • UV stabilizers
   • Flame retardants
   • Impact modifiers
   • Color concentrates

Cost Considerations and Material Selection

Material costs significantly impact the overall project budget. Here’s my practical approach to material selection:

1. Standard Materials

   • ABS: $1.50-2.50/lb
   • Polypropylene: $1.00-1.80/lb
   • Polycarbonate: $2.50-3.50/lb

2. Engineering Materials

   • Nylon: $3.00-4.50/lb
   • PPS: $8.00-12.00/lb
   • PEEK: $80.00-120.00/lb

Industry-Specific Requirements

Different industries have unique material requirements:

1. Medical Industry

   • Biocompatibility
   • Sterilization resistance
   • FDA compliance
   • Traceability

2. Automotive Sector

   • Heat resistance
   • Impact strength
   • Chemical resistance
   • UV stability

3. Consumer Electronics

   • Flame retardancy
   • EMI shielding
   • Aesthetic appeal
   • Durability

At PTSMAKE, we maintain a comprehensive database of material properties and processing parameters to help our clients make informed decisions. We regularly perform material testing and validation to ensure optimal performance in their specific applications. This systematic approach helps avoid costly mistakes and ensures successful production outcomes.

What Are the Advantages and Disadvantages of Plastic Injection Molding?

Making the wrong choice in manufacturing methods can lead to costly mistakes and project delays. Many manufacturers struggle with selecting the right production process, especially when considering plastic injection molding. The stakes are high – choose wrong, and you could face excessive costs, quality issues, or missed market opportunities.

Plastic injection molding combines high efficiency with excellent precision, making it ideal for large-scale production. While it requires significant upfront investment in tooling, the process offers outstanding part consistency and low per-unit costs at volume, though design limitations must be considered.

Key Advantages of Plastic Injection Molding

High Production Efficiency

• Rapid cycle times (typically 15-60 seconds per part)
• Automated operation with minimal human intervention
• Ability to produce multiple parts simultaneously using multi-cavity molds
• Continuous production capability for 24/7 operations

Superior Quality and Consistency

The rheological⁵ behavior of molten plastic during injection ensures:

• Exceptional part-to-part consistency
• High dimensional accuracy (±0.1mm or better)
• Excellent surface finish quality
• Minimal post-processing requirements

Cost-Effectiveness at Scale

Material Versatility

• Compatible with hundreds of polymer types
• Ability to mix materials for custom properties
• Options for various colors and textures
• Possibility to incorporate additives for enhanced performance

Notable Disadvantages

High Initial Investment

• Mold design and fabrication costs ($10,000-$100,000+)
• Equipment investment requirements
• Setup and testing expenses
• Training and maintenance costs

Design Limitations

1. Wall Thickness Constraints

   • Minimum thickness requirements
   • Need for uniform wall thickness
   • Risk of sink marks in thick sections

2. Draft Angle Requirements

   • Necessary for part ejection
   • May affect aesthetic appearance
   • Impact on functional features

Production Constraints

• Minimum order quantities needed for cost-effectiveness
• Long lead times for initial tool development
• Limited flexibility for design changes
• Color and material changeover complications

Special Considerations

Environmental Impact

• Energy consumption during production
• Material waste management
• Recycling capabilities
• Environmental regulations compliance

Quality Control Requirements

1. Process Parameters

   • Temperature control
   • Pressure monitoring
   • Cycle time optimization
   • Material preparation

2. Quality Assurance

   • Regular part inspection
   • Tool maintenance
   • Process documentation
   • Material testing

Industry-Specific Factors

From my experience at PTSMAKE, successful injection molding projects require careful consideration of these factors. We’ve helped numerous clients navigate these trade-offs, often finding that the key to success lies in thorough planning and design optimization before tool creation begins.

The decision to use injection molding should be based on a comprehensive analysis of:

• Production volume requirements
• Part complexity and design features
• Material specifications
• Quality standards
• Budget constraints
• Time-to-market goals

When properly implemented, injection molding can offer an excellent balance of quality, cost, and efficiency. However, it’s crucial to understand both its capabilities and limitations to make an informed decision about whether it’s the right manufacturing method for your specific application.

How Are Plastic Injection Molds Designed and Manufactured?

Designing and manufacturing plastic injection molds is becoming increasingly complex with today’s demanding product specifications. Many companies struggle with mold designs that lead to production defects, extended cycle times, and premature mold wear. These issues not only increase production costs but also cause significant project delays and quality problems.

The plastic injection mold design and manufacturing process involves several critical stages: initial design planning, 3D modeling, material selection, CNC machining, and testing. Each stage requires careful consideration of factors like part geometry, material flow, cooling efficiency, and maintenance accessibility to create a reliable, high-performance mold.

Initial Design Phase and Planning

The foundation of successful mold making begins with thorough design planning. At PTSMAKE, we start by analyzing the product’s 3D model and specifications. This includes evaluating critical dimensions, surface finishes, and material requirements. The initial design phase also involves determining:

• Parting line locations
• Gate types and positions
• Number of cavities
• Ejection system requirements
• Venting requirements

During this stage, we use advanced finite element analysis⁶ software to simulate material flow and identify potential issues before manufacturing begins.

Core and Cavity Design Considerations

The core and cavity represent the heart of any injection mold. Here’s a detailed breakdown of key design elements:

Material Selection and Treatment

The choice of mold materials significantly impacts performance and longevity. Here’s our typical material selection process:

1. Core and Cavity Materials

   • P20 steel for large molds
   • H13 steel for high-volume production
   • S7 steel for high-wear applications

2. Support Components

   • 1045 steel for support plates
   • 420 stainless steel for cooling components
   • Bronze alloys for wear plates

Cooling System Design

An efficient cooling system is crucial for maintaining consistent cycle times and part quality. We implement these cooling strategies:

1. Channel Layout

   • Uniform distance from part surfaces
   • Balanced flow patterns
   • Strategic baffle placement

2. Temperature Control

   • Independent circuits for different areas
   • Monitoring points for temperature verification
   • Turbulent flow maintenance

Manufacturing Process Steps

The manufacturing process follows a precise sequence:

1. Roughing Operations

   • Block preparation
   • Core and cavity rough cutting
   • Support plate machining

2. Heat Treatment

   • Stress relief
   • Hardening
   • Tempering

3. Finishing Operations

   • High-speed machining
   • EDM processing
   • Surface grinding
   • Polishing

Quality Control and Testing

Every mold undergoes rigorous testing before delivery:

1. Dimensional Verification

   • CMM inspection
   • Surface finish measurement
   • Component alignment checks

2. Trial Runs

   • First article inspection
   • Cycle time optimization
   • Part quality verification

Maintenance Considerations

Incorporating maintenance-friendly features is essential:

1. Access Points

   • Easy-to-reach cleaning areas
   • Removable inserts
   • Standardized components

2. Wear Prevention

   • Hardened wear surfaces
   • Replaceable components
   • Anti-corrosion treatments

Cost Optimization Strategies

To maintain cost-effectiveness while ensuring quality:

1. Design Optimization

   • Standard component usage
   • Simplified machining where possible
   • Modular construction

2. Material Selection

   • Application-specific grades
   • Local availability consideration
   • Long-term cost impact analysis

I’ve found that successful mold design and manufacturing requires a balance between technical excellence and practical considerations. Every decision in the process impacts the final product quality and production efficiency. By following these systematic approaches and maintaining strict quality controls, we consistently produce molds that meet or exceed our clients’ expectations.

The key to success lies in understanding that mold making is both an art and a science. While technical specifications are crucial, the experience to anticipate and prevent potential issues before they occur is equally important. Through careful planning, precise execution, and thorough testing, we ensure each mold performs optimally throughout its intended lifecycle.

What Are Common Defects in Plastic Injection Molding and How to Prevent Them?

Every day, I see manufacturers struggling with injection molding defects that compromise their product quality and increase production costs. These issues not only lead to high scrap rates but also cause significant production delays and customer dissatisfaction. The impact on bottom lines and project timelines can be devastating.

Injection molding defects are common manufacturing issues that can occur during the molding process, including warping, sink marks, flash, and short shots. These problems typically stem from improper machine settings, material issues, or mold design flaws. However, with proper understanding and preventive measures, most defects can be effectively managed.

Understanding Warping Defects

Warping occurs when different sections of a molded part cool at uneven rates, causing distortion. The main challenge with warping is its impact on the differential shrinkage⁷ behavior of the material. I’ve implemented several strategies to prevent warping:

• Optimize cooling channel design
• Maintain uniform wall thickness
• Adjust molding parameters
• Select appropriate materials

Sink Marks: Causes and Solutions

Sink marks appear as depressions on the surface of molded parts. These defects typically occur in areas with thick sections or near ribs. Here’s what I’ve found works best to prevent sink marks:

Addressing Short Shots

Short shots occur when the mold cavity isn’t completely filled with plastic material. Through my experience, I’ve identified several key factors:

• Insufficient injection pressure
• Improper material temperature
• Blocked or restricted gates
• Poor venting design

Flash Management Techniques

Flash, the excess material that forms thin projections at part edges, requires careful attention. My approach to flash prevention includes:

1. Regular mold maintenance
2. Proper clamp force calculation
3. Optimized injection pressure
4. Material viscosity control

Flow Lines and Weld Lines

These visual defects often appear as wavy patterns or lines on the part surface. To minimize their occurrence:

• Adjust melt temperature
• Optimize gate location
• Control injection speed
• Implement proper venting

Burn Marks Prevention

Burn marks appear as discolored or degraded areas on the part. My prevention strategy includes:

1. Proper venting design
2. Controlled injection speed
3. Optimized melt temperature
4. Regular mold cleaning

Quality Control Measures

To ensure consistent part quality, I recommend implementing:

Process Parameter Optimization

Success in injection molding requires careful balance of various parameters:

• Injection pressure and speed
• Melt and mold temperature
• Cooling time and temperature
• Holding pressure and time

Preventive Maintenance Strategy

Regular maintenance is crucial for defect prevention:

1. Weekly mold inspection
2. Regular cleaning schedules
3. Systematic wear monitoring
4. Preventive repairs and updates

Material Selection and Handling

Proper material selection and handling significantly impact part quality:

• Storage conditions monitoring
• Moisture content control
• Material compatibility verification
• Processing temperature ranges

The key to successful injection molding lies in understanding these defects and implementing proper prevention strategies. By maintaining strict quality control measures and regular maintenance schedules, manufacturers can significantly reduce defect rates and improve overall production efficiency. These practices not only ensure better part quality but also lead to cost savings through reduced waste and improved customer satisfaction.

In today’s manufacturing landscape, many industries struggle with the challenge of producing complex parts consistently and cost-effectively. The pressure to meet tight deadlines while maintaining quality standards has become increasingly intense, leaving manufacturers searching for reliable solutions that can scale with their needs.

Plastic injection molding serves as a versatile manufacturing process that multiple industries rely on for producing high-quality plastic components. This method offers exceptional precision, cost-effectiveness, and the ability to create complex geometries, making it essential for sectors ranging from automotive to medical devices.

Automotive Industry Applications

The automotive sector represents one of the largest users of injection molded parts. I’ve observed how this technology has revolutionized vehicle manufacturing through:

• Interior Components

  • Dashboard elements
  • Door panels
  • Center console parts
  • Seat components

• Exterior Parts

  • Bumper covers
  • Mirror housings
  • Wheel covers
  • Grille components

The rheological properties⁸ of the plastic materials we use allow for excellent surface finish and structural integrity, which are crucial for automotive applications.

Medical Device Manufacturing

In the medical industry, injection molding plays a critical role in producing:

Electronics Industry Implementation

The electronics sector heavily depends on injection molding for:

1. Consumer Electronics

   • Smartphone cases
   • Laptop housings
   • Tablet enclosures
   • Camera bodies

2. Component Housing

   • Connector shells
   • Switch covers
   • Circuit board enclosures
   • Cable management systems

Aerospace and Defense Applications

The aerospace industry requires components that meet strict specifications:

• Interior cabin components
• Ventilation system parts
• Equipment housing units
• Lightweight structural elements

These parts must maintain stability under extreme conditions while meeting rigid safety standards.

Consumer Goods Manufacturing

The consumer goods sector utilizes injection molding for:

Household Items

• Storage containers
• Kitchen utensils
• Furniture components
• Appliance parts

Personal Care Products

• Cosmetic packaging
• Razor handles
• Toothbrush bodies
• Bottle caps

Industrial Equipment and Machinery

Manufacturing equipment relies on injection molded components for:

• Control panel housings
• Safety guards
• Tool handles
• Equipment covers
• Mechanical components

The durability and cost-effectiveness of these parts make them ideal for industrial applications.

Packaging Industry Integration

Packaging solutions benefit from injection molding through:

At PTSMAKE, we’ve developed specialized processes for each industry, ensuring that our injection molding services meet specific sector requirements. The key lies in understanding how different industries require varying approaches to material selection, quality control, and production processes.

The versatility of injection molding continues to expand its applications across industries. Success in implementation requires:

1. Understanding industry-specific requirements
2. Selecting appropriate materials
3. Maintaining precise quality control
4. Ensuring consistent production processes
5. Meeting regulatory standards

Each industry presents unique challenges and opportunities, but the fundamental benefits of injection molding – precision, efficiency, and scalability – remain constant across sectors. This manufacturing method continues to evolve, incorporating new technologies and materials to meet emerging industry needs.

What Are the Latest Innovations in Plastic Injection Molding?

In today’s manufacturing landscape, many companies struggle to keep pace with rapidly evolving injection molding technologies. The pressure to reduce production costs while maintaining quality creates significant challenges. Traditional molding methods often fall short in meeting modern efficiency demands and complex part requirements.

The latest innovations in plastic injection molding include smart manufacturing systems, high-speed molding technologies, and multi-material processing capabilities. These advancements significantly improve production efficiency, part quality, and manufacturing flexibility while reducing costs and environmental impact.

Smart Manufacturing Integration

The integration of Industrial Internet of Things⁹ technology has revolutionized injection molding processes. At PTSMAKE, we’ve implemented smart sensors and real-time monitoring systems that provide instant feedback on critical parameters:

• Melt temperature
• Injection pressure
• Cooling time
• Cycle efficiency
• Material flow rates

These smart systems help prevent defects before they occur and optimize production parameters automatically.

High-Speed Molding Technologies

Modern high-speed injection molding has transformed production capabilities through several key innovations:

Multi-Material and Advanced Processing

Multi-material molding represents a significant advancement in manufacturing capabilities. This technology allows:

1. Combining different materials in a single molding cycle
2. Creating complex geometries with varying properties
3. Reducing assembly steps
4. Improving product functionality

Sustainable Manufacturing Solutions

Environmental consciousness drives several innovations:

• Bio-based materials processing
• Energy-efficient equipment
• Waste reduction systems
• Recycling-friendly designs

Digital Twin Technology

Digital twin technology creates virtual replicas of physical molding processes, enabling:

1. Predictive maintenance
2. Process optimization
3. Quality control improvements
4. Reduced setup times

Advanced Material Development

New material innovations continue to expand possibilities:

• Self-healing polymers
• Nano-enhanced materials
• Biodegradable options
• High-performance composites

Quality Control Innovations

Modern quality control systems incorporate:

• Artificial intelligence inspection
• Machine learning algorithms
• Automated defect detection
• Real-time process adjustment

Automation and Robotics

The integration of robotics has enhanced:

• Part removal efficiency
• Secondary operations
• Quality inspection
• Material handling
• Packaging processes

Future Trends

Looking ahead, several emerging technologies show promise:

1. Quantum computing for process optimization
2. Advanced polymer development
3. Hybrid manufacturing systems
4. Cloud-based production management
5. Augmented reality for maintenance

These innovations collectively represent a significant leap forward in injection molding capabilities. The combination of smart technology, advanced materials, and automated systems creates unprecedented opportunities for manufacturers to improve efficiency, quality, and sustainability.

Through these advancements, we at PTSMAKE continue to push the boundaries of what’s possible in injection molding. The integration of these technologies allows us to offer our clients superior products while maintaining competitive pricing and reducing environmental impact.

The future of injection molding lies in the continued development and refinement of these technologies, creating ever more efficient and capable manufacturing processes. As we move forward, the focus remains on improving quality, reducing waste, and increasing production efficiency through technological innovation.

How Does Plastic Injection Molding Compare to Other Manufacturing Methods?

Choosing the right manufacturing method for plastic parts can be overwhelming. With multiple options available – from injection molding to 3D printing, CNC machining, and thermoforming – many manufacturers struggle to determine which process best suits their specific needs. The wrong choice can lead to increased costs, quality issues, and production delays.

Plastic injection molding excels in high-volume production with consistent quality and lower per-unit costs compared to other methods. While 3D printing offers design flexibility and rapid prototyping, and CNC machining provides high precision, injection molding remains the most cost-effective solution for large-scale plastic part production.

Key Characteristics of Each Manufacturing Method

When comparing different manufacturing methods, it’s essential to understand their unique characteristics. I’ve created a comprehensive comparison based on key factors that influence production decisions:

Production Volume and Cost Analysis

The economies of scale¹⁰ achieved through injection molding make it particularly attractive for high-volume production. While the initial tooling investment is significant, the per-unit cost decreases dramatically as production volume increases. For example, a plastic component that costs $20 to 3D print might only cost $0.50 when injection molded in high volumes.

Design Flexibility and Complexity

Each manufacturing method offers different capabilities in terms of design complexity:

• Injection Molding: Handles complex geometries with consistent quality
• 3D Printing: Offers unlimited design freedom and internal structures
• CNC Machining: Limited by tool accessibility and geometry
• Thermoforming: Best suited for simple, hollow shapes

Material Selection and Properties

Material options vary significantly across manufacturing methods:

• Injection Molding: Wide range of thermoplastics and engineered materials
• 3D Printing: Limited to specific filaments and resins
• CNC Machining: Can work with most solid materials
• Thermoforming: Limited to thermoplastic sheets

Production Speed and Lead Times

Understanding production speed is crucial for project planning:

• Injection Molding: High-speed production once tooling is ready
• 3D Printing: Quick for small batches but slow for larger volumes
• CNC Machining: Moderate speed, dependent on complexity
• Thermoforming: Relatively quick for simple shapes

Quality and Consistency

I’ve observed significant differences in quality consistency across these methods:

• Injection Molding: Exceptional consistency and repeatability
• 3D Printing: Variation between prints, layer lines visible
• CNC Machining: High precision but costs increase with tighter tolerances
• Thermoforming: Good for large parts but limited detail

Environmental Impact and Sustainability

Each method has different environmental implications:

• Injection Molding: Efficient material use, recyclable scrap
• 3D Printing: Higher material waste, some non-recyclable materials
• CNC Machining: Significant material waste from cutting
• Thermoforming: Moderate material waste, recyclable scraps

Cost Structure and Investment

The financial aspects vary significantly:

• Injection Molding: High initial investment, low unit cost
• 3D Printing: Low setup cost, higher unit cost
• CNC Machining: Moderate setup cost, high unit cost
• Thermoforming: Moderate tooling cost, medium unit cost

Application-Specific Considerations

Based on my experience at PTSMAKE, I recommend:

• Use injection molding for: High-volume production, consistent quality requirements
• Choose 3D printing for: Prototypes, custom parts, low-volume production
• Select CNC machining for: High-precision parts, metal-plastic hybrid components
• Opt for thermoforming for: Large, simple shapes, packaging materials

This comprehensive comparison helps manufacturers make informed decisions based on their specific requirements. The key is to evaluate these factors in the context of your project’s unique needs, timeline, and budget constraints.
